What Are Aluminium Window Profiles and Why They Matter
Most people shop for windows. Few people think about what windows are actually made from. That distinction — between the finished product and the raw structural components inside it — is exactly where costly mistakes happen on Australian projects.
An aluminium window profile is an extruded aluminium shape that forms the structural framework of a window unit. Profiles are the building blocks — not the finished window — and they determine a window’s strength, thermal performance, glazing capacity, and weather resistance.
What Exactly Is an Aluminium Window Profile
Think of an aluminium window profile as the skeleton inside the skin. A complete window assembly consists of multiple profile components working together: the frame (fixed to the building opening), the sash (the movable or fixed panel holding the glass), mullions (vertical dividers between glass sections), and transoms (horizontal dividers). Each of these components starts life as a specific aluminium window profile — an engineered cross-section extruded from aluminium alloy billet to precise tolerances.
Profiles are not generic metal bars. Every groove, chamber, and channel in the cross-section serves a purpose — from housing weatherseals and drainage paths to accommodating different glass thicknesses. The profile design dictates what the finished window can and cannot do. A window fabricator selects profiles, cuts them to size, and assembles them with hardware and glazing to create the final product. The profile is where performance begins.
Why Profile Selection Matters for Australian Projects
Australia’s building conditions are unusually varied. A single country spans tropical cyclone zones, salt-laden coastlines, arid inland extremes, and alpine cold. Windows in aluminium frames need to handle all of it — but only if the underlying profiles are specified correctly for the conditions they will face.
For homeowners renovating a weatherboard cottage, the aluminium window profile chosen affects how much heat leaks through the frame in winter. For architects designing multi-storey developments in coastal Queensland, profiles must meet cyclone-rated structural loads while resisting salt corrosion for decades. Getting this wrong does not show up on day one. It shows up five or ten years later, in condensation damage, failed seals, or windows that no longer meet code.
This guide breaks down what aluminium window profiles actually are, how they differ, and what matters when specifying them for Australian conditions — the kind of detail product catalogues tend to skip entirely.
Profile Anatomy and the Extrusion Process
A finished window aluminium frame looks deceptively simple from the outside — just a slim border around glass. Cut through that border, though, and you will find an engineered cross-section with multiple chambers, channels, and precisely shaped surfaces. Each element performs a distinct job, and understanding what sits inside the profile helps explain why some windows outperform others by a wide margin.
Anatomy of an Aluminium Profile Cross-Section
Slice any aluminium windows profile in half and you will see a geometry far more complex than a simple hollow rectangle. The cross-section is where all performance characteristics are designed in — thermal resistance, water management, structural rigidity, and glazing capacity all start here.
- Outer wall — the exterior-facing skin that resists weather, UV exposure, and physical impact. Its surface receives the powder coat or anodised finish.
- Inner wall — the interior-facing surface, often shaped to accept trim covers or plasterboard returns during installation.
- Thermal cavity — an air gap or polyamide-filled zone between outer and inner walls that reduces heat conduction through the frame (present in thermally broken profiles).
- Glazing rebate — the channel or pocket that holds the glass unit in place. Its depth and width determine the maximum glass thickness the profile can accept.
- Drainage channels — small slots or pathways that allow any moisture entering the frame to weep outward rather than pooling inside the profile.
- Weatherseal grooves — precision-cut channels that house rubber or TPE seals, creating airtight and watertight barriers between frame and sash components.
The glazing rebate deserves extra attention. A shallow rebate might accept only a single 6mm pane — fine for an internal partition, but inadequate for external use in most Australian climate zones. Deeper rebates of 20mm to 28mm accommodate insulated glass units (IGUs) used in double glazing, while profiles designed for triple-glazed configurations push rebate depths beyond 35mm. The profile literally sets the ceiling on what glass performance the window can deliver.
How Aluminium Extrusion Creates Window Profiles

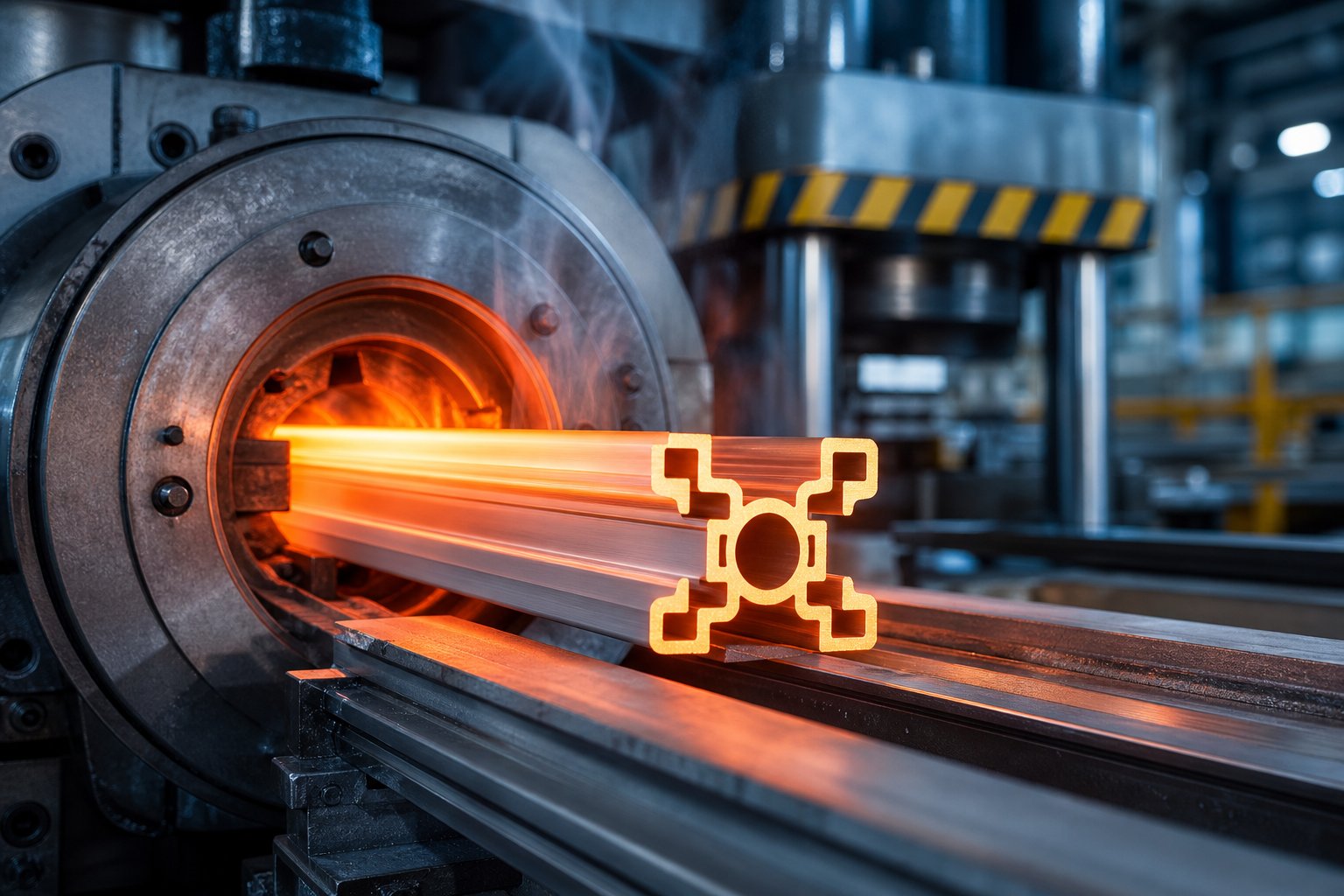

Every aluminum window profile begins as a solid cylindrical billet of 6063 aluminium alloy — the standard grade for architectural extrusions due to its excellent formability and surface finish qualities. The manufacturing sequence turns that simple cylinder into a complex hollow shape in a matter of seconds.
The billet is heated to approximately 480°C, making it malleable but not molten. A hydraulic ram then forces the softened aluminium through a hardened steel die — a precision-machined plate with an opening shaped exactly like the desired profile cross-section. Under pressures exceeding 2,000 tonnes, the metal flows through the die and emerges as a continuous length of finished profile, hollow chambers and all.
After extrusion, profiles are rapidly cooled (quenched), stretched to eliminate any bowing, and then artificially aged in ovens at around 190°C to develop their final hardness and strength properties (T5 or T6 temper). The result is a dimensionally stable, structurally consistent length of aluminium ready for cutting, machining, and assembly into window frames.
This process explains why aluminium profiles can incorporate such intricate internal geometries — multiple chambers, thin webs, integrated screw ports — at scale. The die determines every detail of the cross-section, and once tooled, it can produce thousands of identical metres.
Profile Depth and Wall Thickness Grades
Two numbers matter most when comparing profiles: depth and wall thickness. Profile depth — measured from the exterior face to the interior face — typically ranges from 45mm for lightweight residential systems up to 100mm or more for high-performance commercial and thermally broken designs. A deeper profile provides greater structural rigidity (critical for spanning wider openings without deflection), more room for thermal break material, and a larger glazing rebate for thicker glass units.
Wall thickness follows a similar logic. Standard residential profiles in Australia commonly use 1.6mm walls, while commercial-grade and high-wind-rated systems step up to 2.0mm or even 2.5mm. Thicker walls increase the moment of inertia — the profile’s resistance to bending — which directly determines how wide a span the window can cover without excessive flex under wind load.
For practical purposes, a 52mm-deep profile with 1.6mm walls suits a standard residential awning window up to about 1200mm wide. Push that opening to 1800mm or beyond, and you will need a deeper, heavier-walled profile to maintain acceptable deflection limits under Australian design wind pressures calculated to AS2047. The relationship between profile geometry, spanning capacity, and glazing weight is what makes specification a genuine engineering decision rather than a simple catalogue pick.
How Different Window Types Use Different Profiles
Profile depth and wall thickness tell you what a section can structurally handle — but the shape of the cross-section itself changes dramatically depending on how the window actually operates. A sliding window and a casement window might sit side by side on the same elevation drawing, yet the profiles inside them share almost nothing in common. Each operation type demands purpose-built geometry to manage its specific movement, sealing, and hardware requirements.
Sliding and Awning Profile Designs
Sliding windows remain the most popular residential type across Australia. Their profiles are defined by interlocking sash tracks — parallel channels machined into the frame and sash profiles that allow horizontal movement while maintaining weather resistance. The outer and inner sashes sit on separate tracks with pile weatherstrips between them, and the frame profile incorporates raised track rails that keep sashes aligned and prevent lateral racking under wind pressure.
Profile depth on sliding systems typically starts around 52mm for standard residential units. Because the sashes overlap rather than seal against a compression gasket, drainage becomes critical — the bottom track profile includes weep slots and standing-water channels designed to manage driven rain without allowing water inside.
Awning windows take a fundamentally different approach. Hinged at the top and projecting outward from the bottom, they rely on friction stays or chain winders mounted to reinforced zones within the sash and frame profiles. The profile cross-section must include thickened screw bosses to anchor hinge hardware securely, plus compression weatherseal grooves on all four sides to maintain an airtight seal when closed. Awning profiles tend to run deeper — 60mm to 72mm for residential grades — because the sash hangs under its own weight when open, demanding greater structural rigidity.
Casement and Tilt-and-Turn Profiles
Aluminium casement windows share some DNA with awning designs but orient the hinge vertically along one side. The profile must support multi-point locking hardware on the opposite stile, which means integrated lock keeps and espagnolette channels are built directly into the cross-section geometry. Hinge-side reinforcement is especially critical on taller casement sashes, where leverage forces concentrate at the top hinge point.
Aluminium tilt and turn windows push profile complexity further again. These dual-action systems require profiles that accommodate two entirely separate hardware paths — a tilt function (top-hinged inward opening for ventilation) and a turn function (side-hinged inward opening for cleaning and maximum airflow). The profile must house concealed multi-point locking mechanisms around its full perimeter, with precision-routed channels for the operating hardware that switches between modes via a single handle. Profile depths for tilt-and-turn systems in Australia commonly sit between 70mm and 80mm, reflecting the need for robust hardware accommodation and superior weathersealing.
Double hung aluminium windows present their own profile challenge. Traditional double-hung systems use spring-balanced sashes that slide vertically within a channelled frame profile — the frame must provide smooth, low-friction tracks while housing the balance mechanisms. Sashless double hung windows take a strikingly different approach: they eliminate the visible frame around each glass panel entirely, using pressure-fit glazing within a minimal perimeter channel. The result is a near-frameless aesthetic, but the profile engineering shifts to concealed counterbalance systems and edge-sealing details that differ markedly from standard double-hung sections.
Louvre and Fixed Window Profiles
Aluminium louvre windows use a profile system unlike any other window type. Rather than a single sash moving as one unit, a louvres window operates through multiple horizontal glass or aluminium blades rotating in unison. The frame profile incorporates a series of blade-holder clips or pivot channels at precise vertical spacing — typically 100mm centres — and the operating mechanism links all blades to a single control handle or actuator. Profile design here is less about spanning wide openings and more about repetitive precision: each blade channel must align perfectly to maintain consistent seal pressure across every slat when closed.
A fixed louvre window — one with blades permanently set at a specific angle — simplifies the hardware but still requires the same blade-channel profile geometry for consistent spacing and weatherproofing.
At the opposite end of complexity sits the aluminium fixed window. With no moving parts, these profiles can be slimmer and simpler, often as shallow as 45mm. The entire cross-section is dedicated to structural performance and glazing retention — there are no hinge bosses, no tracks, no hardware channels. This makes fixed profiles ideal for maximising glass area with minimal sightlines, which is why architects favour them for large picture windows and curtain-wall-style residential facades.
| Operation Type | Typical Profile Depth | Key Profile Features | Best Application |
|---|---|---|---|
| Sliding | 52–65mm | Interlocking sash tracks, pile weatherstrips, weep drainage channels | Living areas, bedrooms, balconies — where space beside the opening is limited |
| Awning | 60–72mm | Reinforced hinge bosses, four-sided compression seals, chain winder channels | Kitchens, bathrooms, high-level openings — ventilation during rain |
| Casement | 60–72mm | Multi-point lock channels, hinge reinforcement zones, espagnolette routing | Bedrooms, living rooms — maximum airflow and unobstructed views |
| Tilt-and-Turn | 70–80mm | Dual-action hardware channels, perimeter multi-point locking, concealed hinges | Upper-storey rooms, apartments — secure ventilation and easy interior cleaning |
| Double Hung | 55–70mm | Vertical sash tracks, spring balance cavities, interlocking meeting rails | Heritage renovations, streetscape compliance, character homes |
| Louvre | 50–60mm (frame) | Blade-holder pivot channels, linked operating mechanism, repetitive seal grooves | Wet areas, laundries, sub-floor ventilation, tropical climates |
| Fixed | 45–55mm | Minimal sightline, full glazing rebate, no hardware accommodation | Picture windows, highlight panels, curtain-wall residential designs |
Specifiers selecting windows for different rooms and orientations benefit from understanding these profile differences early. A bathroom might call for louvre ventilation, a living room for expansive sliding or fixed glazing, and an upper-level study for tilt-and-turn convenience. Each choice carries a different profile behind it — and with that profile comes a distinct set of thermal, structural, and weatherproofing characteristics that shape how the window performs for the life of the building.
Thermal Break vs Non-Thermal Break Profiles Explained
Every profile type discussed above — sliding, awning, casement, fixed — can be manufactured in two fundamentally different configurations: with or without a thermal break. This single design choice affects energy performance more than almost any other specification decision on the window schedule, yet it remains poorly understood outside specialist circles.
How Thermal Break Technology Works Inside a Profile
Aluminium conducts heat roughly 1,000 times faster than timber and 200 times faster than uPVC. In a standard non-thermally-broken profile, the exterior aluminium face connects directly to the interior face through continuous metal. Heat travels straight through — in summer, the frame channels warmth inward; in winter, it drains it outward. The frame becomes a thermal highway between your conditioned interior and the outside environment.
A thermal break interrupts that highway. The profile is physically split into two separate aluminium sections — one facing outside, one facing inside — connected by an insulating barrier rather than continuous metal. That barrier is typically a strip of polyamide (glass-fibre-reinforced nylon) mechanically crimped into both aluminium halves. Polyamide’s thermal conductivity sits around 0.3 W/mK compared to aluminium’s 237 W/mK — nearly 800 times less conductive. The result is a profile that retains full structural strength through precision mechanical bonding while slashing heat transfer through the frame.
Thermal break widths in thermally broken aluminium windows typically range from 14.8mm in basic residential systems up to 35mm in high-performance commercial profiles. Wider breaks create a longer thermal path and greater insulation, with some premium systems adding foam inserts or multiple polyamide strips within the cavity for further gains.
When Australian Building Code Requires Thermal Break Profiles
The NCC Section J energy efficiency provisions set minimum thermal performance requirements for the building envelope, and windows are often the weakest link. Whether thermal break aluminium windows are mandatory depends on your project’s climate zone, the overall energy compliance pathway, and the glazing strategy.
In climate zones 6, 7, and 8 — covering alpine areas, much of Victoria, Tasmania, the ACT, and highland NSW — heating loads dominate energy calculations. Metal-framed windows in these zones struggle to meet NCC requirements without thermally broken profiles, because the frame U-value drags down the whole-of-window rating regardless of how good the glass is.
NCC 2022 lifted the bar on thermal performance, requiring more careful window specification and thermal breaks to metal frames where applicable. With NCC 2022 now fully in force across all jurisdictions, projects lodging new applications must meet these stricter requirements. Even in moderate climate zones 4 and 5 — Sydney, coastal NSW, Perth — thermally broken aluminium is increasingly specified because tighter whole-of-home energy budgets make standard aluminium frames a compliance liability when paired with the large glazing areas modern designs demand.
Performance Differences You Can Measure
The gap between thermal broken windows and standard profiles is not marginal — it is dramatic. A non-thermally-broken aluminium frame typically delivers a frame U-value between 5.8 and 7.0 W/m²K. Introduce a thermal break and that figure drops to 2.5–3.5 W/m²K for standard systems, or as low as 0.8–1.5 W/m²K for premium multi-chamber configurations. That represents a 70–85% reduction in heat transfer through the frame alone.
| Metric | Non-Thermal Break Profile | Thermally Broken Profile |
|---|---|---|
| Frame thermal conductivity | High — continuous aluminium path | Low — polyamide barrier interrupts conduction |
| Typical frame U-value | 5.8–7.0 W/m²K | 0.8–3.5 W/m²K (depending on break width) |
| Condensation resistance | Poor — interior frame surface cools below dew point in cold weather | Good to excellent — interior surface stays closer to room temperature |
| Cost premium | Baseline | 15–30% above equivalent non-thermally-broken system |
| NCC compliance suitability | Limited to warmer climate zones or small glazing areas | Suitable for all climate zones; increasingly essential for zones 4–8 |
Condensation resistance deserves particular attention. When the interior surface of a frame drops below the dew point of indoor air, moisture forms — leading to mould, timber rot in surrounding joinery, and degraded paint finishes over time. Thermally broken aluminium windows keep the interior frame surface significantly warmer because heat from inside is not being rapidly conducted away. In high-humidity coastal homes or poorly ventilated apartments, this difference alone justifies the investment.
The cost premium for aluminum thermal break windows — typically 15–30% over a comparable standard system — often recovers through reduced heating and cooling loads within a few years, particularly on projects with generous glazing. For anyone specifying aluminum thermally broken windows on a new build in 2024 or beyond, the question is shifting from “do I need this?” to “can I afford not to have it under current NCC requirements?”
Thermal performance, though, does not exist in isolation. How profiles interact with Australian standards, energy rating schemes, and site-specific conditions like bushfire and cyclone zones adds further layers to the specification puzzle.
Australian Standards and Energy Compliance for Profiles
A profile’s thermal break width and frame U-value only tell part of the compliance story. In Australia, multiple overlapping standards govern how aluminium window profiles must perform — structurally, thermally, and in extreme hazard scenarios. Understanding which standards apply to your project, and how profile geometry directly influences compliance, prevents expensive redesigns mid-build.
AS2047 and Structural Performance Requirements
AS2047 is the primary Australian Standard for windows and external glazed doors. It sets mandatory benchmarks across structural adequacy, water penetration resistance, air infiltration limits, and operating force. Every window installed in an external wall of a building must comply — and the profile is where compliance begins.
Key aspects of AS2047 include wind load resistance specific to the window’s geographic location and height above ground. Profile depth, wall thickness, and internal web geometry all determine how much wind pressure a frame can resist before exceeding allowable deflection. In cyclone-prone regions across northern Queensland, the Northern Territory, and parts of Western Australia, design wind pressures can exceed 2.5 kPa — demanding reinforced profiles with thicker walls (2.0mm or above) and additional internal chambers to carry the load without structural failure.
Water penetration resistance depends heavily on drainage channel design within the profile. A well-designed sill profile moves water outward through weep paths before it reaches the interior. Poorly designed or shallow profiles trap water within the frame cavity, eventually leading to leaks that fail the AS2047 test protocol. Air infiltration limits also tie back to profile precision — the tolerance of weatherseal grooves and the compression geometry between frame and sash profiles dictates how much air bypasses a closed window.
- AS2047 (Windows and External Glazed Doors) — governs structural performance, water resistance, air infiltration, and operating force. Profile depth, wall thickness, and drainage geometry directly determine pass/fail outcomes.
- AS1288 (Glass in Buildings) — specifies glass selection, thickness, and safety requirements. Profile design determines the maximum glass thickness and configuration (single, double, triple) the glazing rebate can physically accommodate.
- AS3959 (Construction in Bushfire-Prone Areas) — sets BAL-rated requirements for frame materials, glass thickness, and screening. Aluminium profiles are accepted at all BAL levels up to and including BAL-40, while uPVC and timber face restrictions at higher ratings.
- NCC Section J (Energy Efficiency) — mandates whole-of-window thermal performance via U-values and SHGC limits. Profile thermal properties combine with glazing to produce the overall rating.
- WERS (Window Energy Rating Scheme) — a voluntary but widely specified star-rating system managed by the Australian Glass and Window Association (AGWA) that rates whole-window energy performance for heating and cooling climates.
Energy Ratings and How Profiles Affect WERS Scores
WERS rates windows on a star scale for both heating and cooling performance, with separate ratings reflecting Australia’s diverse climate zones. The system evaluates the complete window — frame plus glazing — meaning a high-performance glass unit paired with a thermally poor profile still delivers a mediocre rating.
Two metrics drive WERS and NCC Section J compliance: U-value (how rapidly heat transfers through the window) and SHGC (Solar Heat Gain Coefficient — how much solar radiation passes through). Profile design primarily influences U-value. A standard aluminium frame adds significant thermal loss to the overall window rating because the frame perimeter typically accounts for 20–35% of the total window area. Switch to a thermally broken profile and the whole-window U-value can improve by 30–50%, depending on frame-to-glass ratio.
This is where aluminium double glazed windows demonstrate their value as a system. The insulated glass unit reduces heat transfer through the glazed area, while the thermally broken profile addresses the frame. Together, they bring the whole-window U-value into compliance territory for climate zones 4 through 8 — something neither component achieves alone. Specifying double glazed aluminium windows with standard (non-thermally-broken) frames often produces a disappointing WERS rating because the frame undermines the glass performance.
Bushfire and Cyclone Zone Profile Requirements
Site-specific hazards add another compliance layer. Bushfire Attack Level (BAL) ratings under AS3959 dictate material and construction requirements for windows in bushfire-prone areas. Aluminium profiles hold a significant advantage here: metal frames are accepted across all BAL categories from BAL-12.5 through BAL-40, whereas uPVC requires metal reinforcement and bushfire-resistant timber carries additional treatment and testing obligations.
At BAL-40, only metal-framed windows comply. Glass thickness requirements also step up — minimum 5mm safety glass for windows at BAL-19 and BAL-29, increasing to 6mm at BAL-40. Profile glazing rebates must be deep enough to accommodate these thicker panes plus any required interlayer (for laminated safety glass) while still allowing proper glazing bead retention. All openable windows at BAL-29 and above must also include metal mesh screens with a maximum 2mm aperture — something the profile system needs to physically support through dedicated screen channels or attachment points.
For cyclone regions, AS2047 wind load requirements intensify considerably. Profiles specified for Darwin, Cairns, or Broome need to resist sustained high wind pressures during cyclonic events. This typically demands commercial-grade sections: deeper profiles (65mm minimum), heavier wall thicknesses (2.0–2.5mm), and reinforced mullion and transom profiles at junction points. Hardware attachment zones within the profile also need upgrading — standard residential screw bosses may not provide adequate pull-out resistance under cyclonic suction loads.
Taken together, these standards form an interconnected web. A project in coastal far north Queensland might simultaneously need cyclone-rated structural performance, BAL-29 bushfire compliance, and NCC Section J energy efficiency — each placing different demands on the profile system. The profile must satisfy all three, which is why specification is not a simple catalogue exercise. It requires matching double-glazed aluminium windows and profile systems against the full set of site-specific regulatory requirements before a single frame is cut.
Choosing Profiles for Australian Climate Zones
Regulatory compliance tells you the minimum performance a profile must deliver. Climate tells you what it will actually endure every day for decades. Australia spans eight distinct climate zones — from steaming tropical coastlines to snow-covered alpine ridges — and each zone attacks aluminium window profiles in different ways. A profile system that performs beautifully in Melbourne’s temperate conditions may corrode prematurely in Cairns or fail condensation tests in a Snowy Mountains lodge.
Tropical and Cyclone Zone Profile Demands
Climate zones 1 and 2 — covering northern Queensland, the Top End, and the Kimberley — combine relentless humidity, intense UV, driving rain, and the ever-present cyclone threat. Profiles here face simultaneous stress from multiple directions. Humidity keeps moisture trapped in frame cavities unless drainage design is exceptional. UV degrades seals and finishes faster than anywhere else in the country. And cyclonic wind pressures demand the reinforced, heavy-walled profiles discussed in the previous section.
Solar heat gain control becomes a profile-level concern in these zones. Because cooling loads dominate energy consumption, the relationship between frame temperature and interior comfort matters. Profiles with larger thermal cavities or thermally broken construction reduce the heat radiating inward from sun-baked frames — particularly on western and northern elevations that receive hours of direct afternoon exposure.
Hardware and seal degradation also accelerates in tropical conditions. The profile must accommodate replaceable weatherseals rather than permanently bonded gaskets, because seals in zone 1 climates often need replacement within 10–15 years even on premium systems.
Coastal Corrosion and Finish Selection

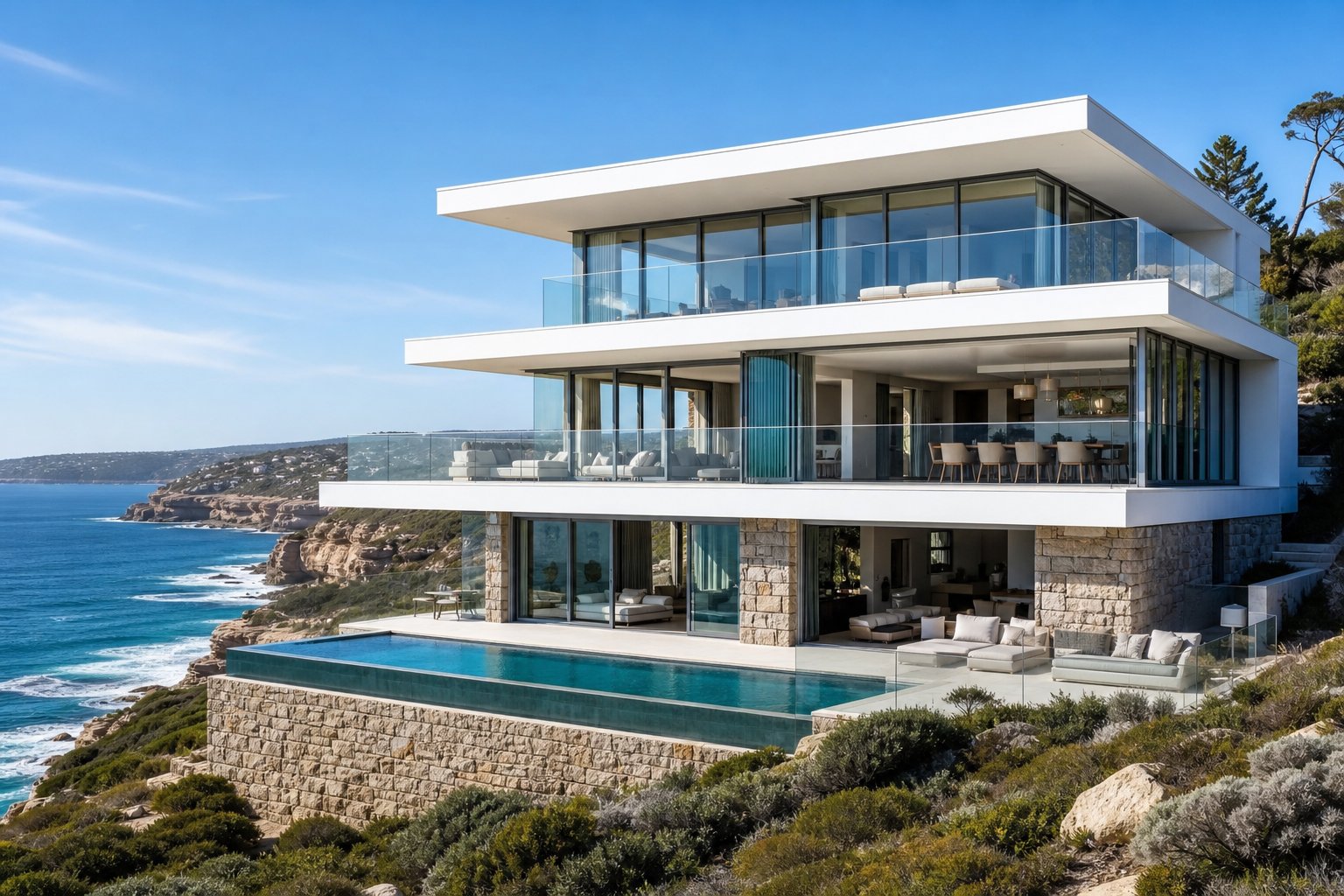

Coastal properties within a kilometre of breaking surf face aggressive salt spray that eats through inadequate finishes. Raw aluminium forms a natural oxide layer, but chlorides in sea salt penetrate microscopic pores and trigger pitting corrosion that can compromise a profile’s structural integrity over time.
Finish selection becomes a critical decision for coastal aluminium window profiles. The two primary options — powder coating and anodising — perform differently depending on exposure severity:
- Marine-grade powder coating — applied at 60–120 microns thickness, this provides a thick protective skin with unlimited colour options. Look for Qualicoat Class 2 or Class 3 certification for genuine coastal durability. Standard architectural powder coating (suitable inland) will chalk and degrade within a few seasons near salt.
- Anodising — an electrochemical process that converts the aluminium surface itself into a hard oxide layer (15–25 microns). Because the protection is integral to the metal rather than applied over it, anodising cannot peel or delaminate. It offers superior abrasion resistance against wind-driven sand but limits colour choices to natural silver, bronze, and black.
- Duplex systems — for extreme frontline coastal exposure (within 300 metres of surf), some specifiers combine anodising with powder coating overtop. This layered approach can deliver 30+ years of protection but adds approximately 40% to finishing costs.
Grey aluminium windows and other mid-tone colours perform well in coastal zones because their finish degradation is less visually obvious than darker shades. Properties facing open ocean should prioritise finish certification over colour preference — the wrong coating grade will fail regardless of hue.
Alpine and Arid Zone Performance Considerations

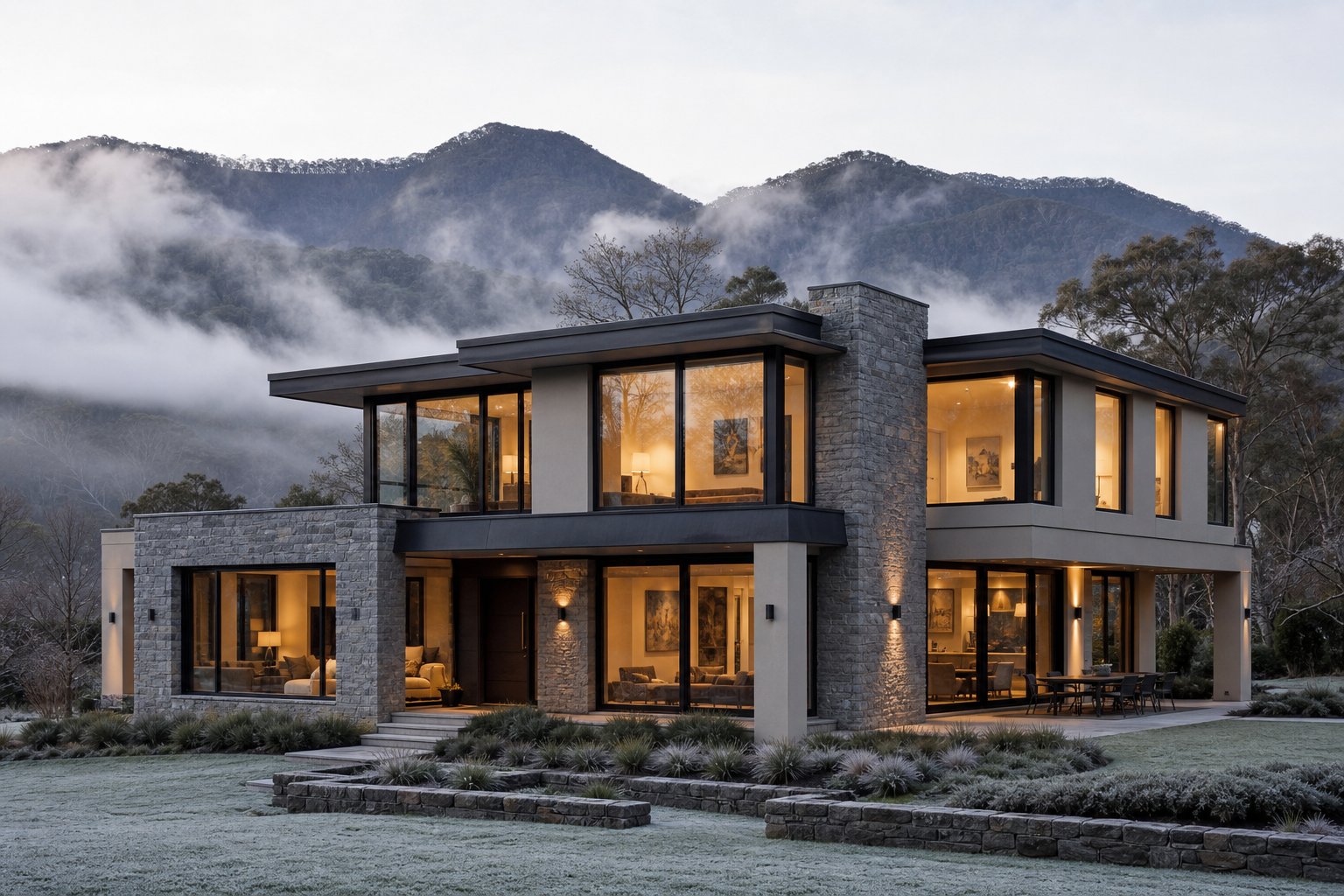

At the opposite extreme, alpine regions (climate zones 7 and 8) stress profiles through sustained cold, frost cycling, and condensation. Interior frame surfaces must stay warm enough to prevent moisture forming — making thermally broken profiles effectively mandatory rather than optional. Snow loads on sills and horizontal transoms also demand consideration; pooling meltwater needs clear drainage paths to prevent freeze-thaw damage within the profile cavity.
Arid inland zones (parts of climate zones 3 and 4) present a different challenge: extreme diurnal temperature swings. A frame that bakes at 50°C during the afternoon and drops to 5°C overnight undergoes significant thermal cycling. Repeated expansion and contraction stress seal compression, corner joints, and the bond between profile and finish. Profiles in these zones benefit from deeper weatherseal grooves that maintain compression across a wider dimensional range, and finishes must resist UV degradation without chalking — a common failure mode for cheaper powder coats exposed to intense inland sun.
| Climate Zone | Key Environmental Challenges | Recommended Profile Features | Finish Considerations |
|---|---|---|---|
| Zones 1–2 (Tropical / Cyclone) | High humidity, cyclonic wind loads, intense UV, driving rain | Heavy-walled profiles (2.0mm+), reinforced drainage, replaceable seals, deep glazing rebates for laminated glass | Marine-grade powder coat (Qualicoat Class 2+); avoid standard architectural grades |
| Zones 5–6 (Temperate Coastal) | Salt spray corrosion, moderate thermal demands, wind-driven rain | Thermally broken profiles for energy compliance, corrosion-resistant hardware, effective weep drainage | Marine-grade powder coat or anodising (15+ microns); duplex system for frontline properties |
| Zones 3–4 (Arid Inland) | Extreme temperature cycling, severe UV, dust ingress, low humidity | Deep weatherseal grooves for compression tolerance, dust-excluding drainage design, profiles suited to wide spans | UV-stable powder coat with high chalk resistance; anodising for maximum UV durability |
| Zones 7–8 (Alpine / Cold) | Sustained cold, frost cycling, condensation risk, potential snow loads | Thermally broken (wide polyamide break), multi-chamber profiles, condensation gutters, reinforced sill profiles | Standard architectural powder coat sufficient (low salt); colour choice affects solar heat gain |
Colour selection intersects with thermal performance in ways many homeowners overlook. Black aluminium windows absorb significantly more solar radiation than lighter-coloured frames — a dark frame on a west-facing wall can reach surface temperatures 20–30°C above ambient on a summer afternoon. In thermally broken profiles, this absorbed heat largely stays on the exterior side of the break, limiting its impact on interior comfort. But in non-thermally-broken systems, that heat conducts directly inward. For projects in Melbourne and southern cities where aluminium black windows are a popular design choice, pairing dark-coloured frames with thermally broken profiles is not just an aesthetic decision — it is a practical strategy to manage heat gain without sacrificing the sleek contemporary look.
The practical takeaway: a profile system cannot be evaluated in isolation from its intended environment. Climate zone determines which combination of profile depth, thermal break configuration, drainage design, and surface finish will actually deliver lasting performance — and getting this match right at specification stage is far cheaper than discovering the mismatch a decade later through corroded frames or failed energy audits.
Aluminium Profiles vs Alternative Frame Materials
Climate, hazard ratings, and energy compliance all shape profile specification — but they also shape the broader question lurking behind every window decision: should you use aluminium at all? Timber, uPVC, and composite frames all compete for the same openings on Australian projects, each with genuine strengths. The honest comparison starts with acknowledging that no single material wins every category.
Aluminium vs Timber Frames for Australian Conditions
Timber has warmth, heritage appeal, and naturally low thermal conductivity. A well-maintained hardwood frame can last 40–60 years and delivers excellent insulation without needing a thermal break. The catch is that “well-maintained” qualifier. Timber demands regular sanding, painting, or oiling — typically every 3–5 years for exterior-exposed frames. Skip a cycle and moisture ingress starts rot, particularly in coastal and tropical zones where humidity never relents.
Aluminium window framing sidesteps this entirely. A powder-coated aluminium profile needs occasional cleaning and nothing more. It will not rot, warp, split, or attract termites — all genuine risks with timber in Australian conditions. Where timber once held an insulation advantage, modern thermally broken aluminium windows now match or exceed timber’s thermal performance while offering superior durability in the coastal and bushfire-prone areas where timber struggles most.
Aluminium also delivers something timber physically cannot: slim sightlines. The strength-to-weight ratio of aluminium alloy allows frame profiles as narrow as 45mm to span openings that would require 90mm+ timber sections to achieve the same structural rigidity. Less frame means more glass, more light, and cleaner architectural lines.
Aluminium vs uPVC and Composite Alternatives
uPVC frames gained traction in Australia as a budget-friendly alternative with decent thermal properties and zero corrosion risk. For straightforward residential replacements on a tight budget, they serve a purpose. But the material carries limitations that matter at specification level.
Structurally, uPVC is weaker than aluminium. Frames must be significantly bulkier to achieve equivalent strength, which means thicker profiles, reduced glass area, and chunkier sightlines. Large openings — floor-to-ceiling panels, wide sliding doors, expansive fixed windows — push uPVC beyond its practical limits. Aluminium handles these spans comfortably because the material’s inherent rigidity supports heavy glass loads without excessive frame depth.
uPVC also faces durability questions in harsh Australian UV environments. Lower-quality formulations can discolour, chalk, or become brittle over extended exposure. Colour options remain limited compared to aluminium’s virtually unlimited powder-coat palette. And at higher BAL ratings in bushfire zones, uPVC requires metal reinforcement to comply — essentially adding aluminium back into the system anyway.
Composite frames (aluminium exterior clad over timber interior) attempt to combine the best of both worlds. They offer good thermal performance and low external maintenance, but at a price premium that exceeds thermally broken aluminium alone. Availability in Australia is also narrower, with fewer system options and longer lead times compared to established aluminium profile networks.
Sustainability and Recyclability Advantages
Here aluminium holds an advantage that grows more relevant each year as green building frameworks tighten. Aluminium is indefinitely recyclable without quality degradation — a profile recycled today can become a new profile tomorrow with identical performance properties. The recycling process uses roughly 5% of the energy required to produce primary aluminium, making end-of-life environmental impact dramatically lower than materials that end up in landfill.
Timber is renewable but slow-growing. uPVC is technically recyclable but rarely recycled in practice within Australia’s current waste streams. For projects targeting Green Star ratings or similar sustainability credentials, aluminium double glazed window systems offer a verifiable closed-loop material story that auditors recognise.
| Criteria | Aluminium (Thermally Broken) | Timber | uPVC | Composite (Aluminium/Timber) |
|---|---|---|---|---|
| Lifespan | 30–45 years | 40–60 years (if maintained) | 25–35 years | 35–45 years |
| Maintenance | Minimal — occasional cleaning | High — repaint/oil every 3–5 years | Minimal — cleaning only | Low — exterior minimal, interior timber care |
| Thermal Performance | Excellent (with thermal break) | Naturally good | Good | Very good |
| Max Span Width | Largest — superior strength-to-weight ratio | Moderate — limited by section size | Smallest — bulky frames needed for strength | Large — aluminium exterior carries load |
| Recyclability | Indefinite — no quality loss | Biodegradable but slow-renewing resource | Technically recyclable, rarely recycled in practice | Partial — aluminium component fully recyclable |
| Cost Range (supply and install) | $$–$$$ | $$$–$$$$ | $–$$ | $$$$ |
| Best Application | Modern residential, commercial, coastal, bushfire zones, large openings | Heritage homes, character builds, cold climates | Budget renovations, standard residential replacements | High-end residential where interior timber aesthetic is non-negotiable |
The pattern is clear. For thermally broken windows and doors specified across the range of Australian conditions — coastal salt, bushfire zones, cyclone regions, large contemporary openings — aluminium profiles deliver the broadest combination of structural capability, design flexibility, regulatory compliance, and long-term durability. Timber and uPVC each have their niche, but neither matches aluminium’s versatility as a system across the full spectrum of Australian project demands.
Knowing which material suits your project is one decision. Knowing how to actually specify and procure the right aluminium profile system — navigating grades, finishes, lead times, and supplier capability — is the next.
Selecting and Sourcing Profiles for Your Project
Material comparisons clarify what aluminium profiles can do. The practical challenge is translating that knowledge into an actual procurement decision — one that accounts for your site conditions, compliance pathway, budget, and construction programme simultaneously. Whether you are a homeowner renovating in suburban Sydney, a builder running multiple sites across Melbourne, or an architect specifying aluminium windows and doors for a coastal development in Queensland, the selection process follows the same logical sequence. Skip a step, and you inherit risk that compounds with every week of construction.
Key Decisions When Specifying Aluminium Profiles
Four primary decisions narrow the field from hundreds of available profile systems down to the handful that genuinely suit your project.
Residential vs commercial grade. Residential profiles (typically 52–65mm deep, 1.6mm walls) suit standard openings in protected positions with moderate wind loads. Commercial-grade sections (65–100mm+, 2.0–2.5mm walls) handle larger spans, higher wind pressures, heavier glazing, and the structural demands of multi-storey buildings. Choosing the wrong grade is not a minor efficiency loss — it is a compliance failure. A residential-grade profile installed in a high-exposure position may not meet AS2047 deflection limits, and no amount of quality glazing fixes that structural shortcoming.
Standard vs thermally broken systems. As covered earlier, this decision hinges on climate zone, NCC Section J requirements, and glazing area. Projects in climate zones 6–8 will almost certainly need thermally broken aluminium profiles. But even in zones 4 and 5, large glass areas or ambitious energy targets often push thermally broken systems from optional to necessary. Early energy modelling — before profile selection is finalised — prevents costly specification changes later.
Finish and colour selection. This is not purely cosmetic. Site exposure determines the minimum finish grade: marine-grade powder coat or anodising for coastal properties, standard architectural powder coat for sheltered inland sites. Colour interacts with thermal performance (dark frames absorb more heat) and with local planning controls that may restrict exterior palette options. Lock in finish requirements early because switching colours or coating grades mid-production resets lead times.
Glazing compatibility. The profile’s glazing rebate depth sets an absolute ceiling on what glass configurations can be installed. A 20mm rebate accepts a standard double-glazed unit. A project requiring acoustic laminated glass, triple glazing, or BAL-rated configurations may need a 28–36mm rebate — which means a deeper, heavier profile system. Coordinating glazing selection with profile capacity at specification stage, rather than discovering the mismatch at fabrication, is one of the simplest ways to avoid project delays.
Site-specific factors layer onto these four decisions. Design wind speed (calculated from AS/NZS 1170.2 for your exact location and building height) determines minimum structural requirements. BAL rating dictates glass type and screening. Acoustic targets near roads or flight paths may push glazing thickness beyond standard rebate depths. Every one of these variables feeds back into the profile selection — which is why treating specification as a catalogue pick rather than an engineering exercise is the mistake this article’s title warns about.
What to Expect from a Project-Capable Supplier
The difference between aluminium window suppliers in Sydney, Melbourne, or anywhere else in Australia is not usually the product — most reputable fabricators work from the same proven profile systems. The difference is service depth. A supplier who simply takes your order and ships product transfers all coordination risk to you. A supplier who actively supports the project absorbs complexity at the stages where their expertise exceeds yours.
Project-capable suppliers typically offer:
- Drawing interpretation — reviewing architectural plans and window schedules to confirm that specified profile systems match structural and energy requirements before production begins.
- System recommendation — advising which profile grade, thermal break configuration, and hardware platform suits your project’s specific conditions rather than defaulting to a single catalogue option.
- Material calculation — optimising profile cut lengths and glass sizes to minimise waste, reduce cost, and avoid fabrication delays from material shortages.
- Manufacturing coordination — scheduling production runs to align with your construction programme so product arrives when your site is ready for it, not weeks early (risking damage) or weeks late (stalling trades).
- Quality control documentation — providing inspection records, test reports, and compliance certificates that give you and your certifier confidence the product meets specification.
- Delivery planning — staging shipments by building level, elevation, or installation sequence rather than dumping the entire order at once.
This full-service model is what separates a transactional supplier from a genuine project partner. For builders managing tight programmes or architects specifying complex fenestration across multiple openings, the coordination support alone can save weeks of back-and-forth. MEICHEN’s aluminium window profile supply and project support services demonstrate this approach in practice — their published process covers system recommendation through to delivery coordination, giving procurement teams a transparent workflow to benchmark against other suppliers.
For straightforward residential renovations with a handful of standard openings, a lighter-touch supplier may suffice. But for multi-dwelling developments, custom configurations, or projects with overlapping compliance requirements (cyclone + bushfire + energy, for instance), the cost of inadequate supplier support far exceeds any premium charged for project-level service.
Regardless of project scale, the selection and procurement sequence itself should follow a disciplined path:
- Define performance requirements from site conditions — wind region, climate zone, BAL rating, acoustic targets, and any council-specific controls.
- Determine NCC compliance pathway — elemental (DTS) or verification (JV3/simulation), and confirm what whole-of-window U-values and SHGC limits your energy assessor requires.
- Select operation types per opening — sliding, awning, casement, fixed, tilt-and-turn, or louvre, based on room function, ventilation needs, and orientation.
- Choose profile system grade — residential or commercial depth and wall thickness, standard or thermally broken, matched to structural and thermal requirements confirmed in steps one and two.
- Specify finish and colour — powder coat grade, anodising, or duplex system based on exposure severity; confirm colour against any planning scheme requirements.
- Coordinate glazing selection with profile capacity — confirm that the chosen glass build-up (thickness, interlayers, gas fill, coatings) physically fits within the profile’s glazing rebate and meets weight limits for operable sashes.

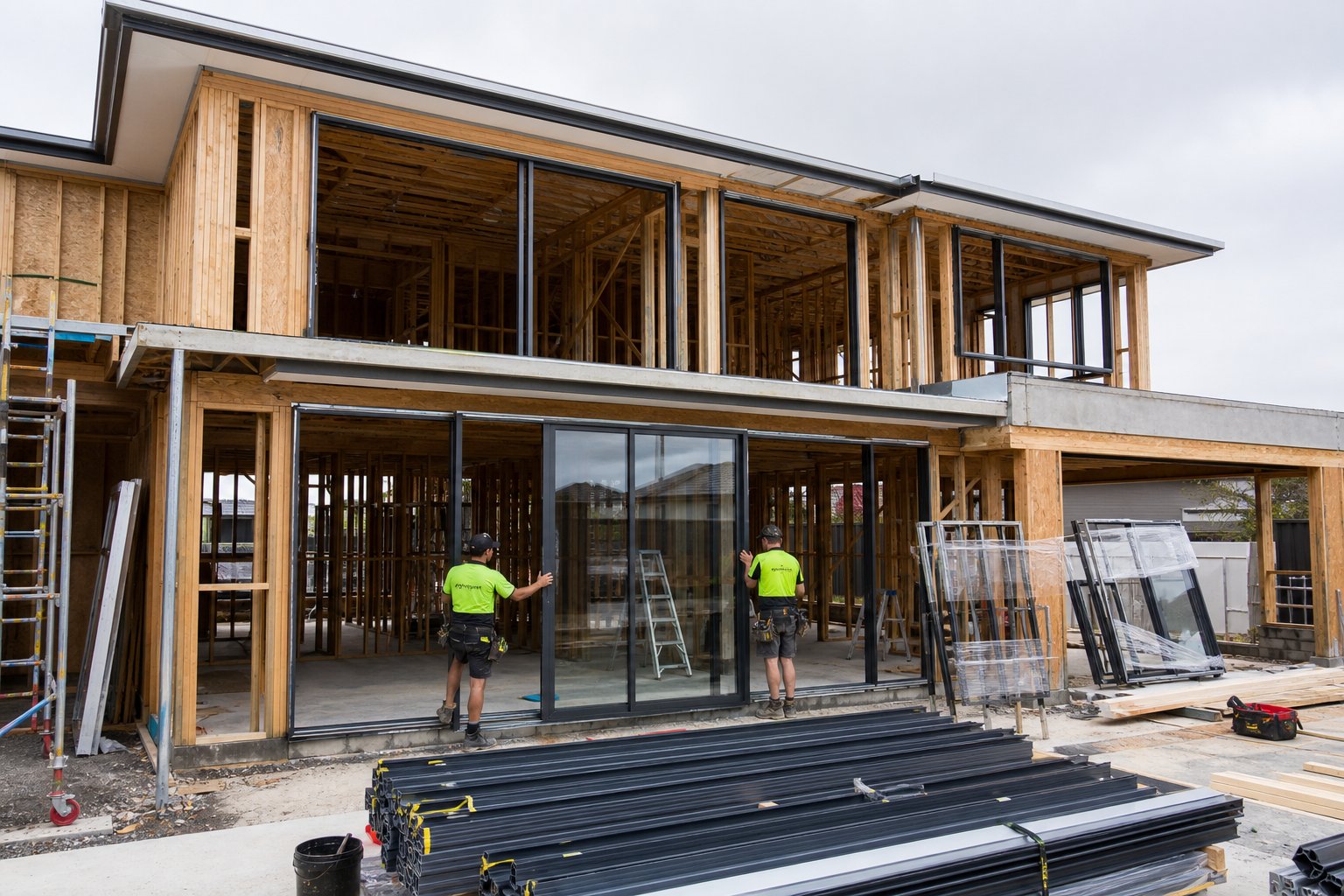

- Confirm supply and fabrication timeline — align production lead times with your construction programme, agree on delivery staging, and lock in the order with finalised shop drawings approved by all parties.
This sequence applies equally to aluminium window suppliers in Sydney servicing harbourside apartments, fabricators supplying aluminium windows and doors in Melbourne for townhouse developments, or specialist suppliers delivering cyclone-rated systems to Darwin. The variables change; the logic does not.
Rushing steps one through three — or skipping them entirely — is the single most common cause of mid-project specification changes, lead time blowouts, and budget overruns on fenestration supply. A profile chosen without reference to site wind speed or energy pathway is a guess. Guesses on aluminium window profiles are expensive to correct once aluminium has been cut, coated, and glazed to the wrong specification. The time invested in structured specification at the front end is the cheapest insurance available against paying for that mistake across the life of the building.
Frequently Asked Questions About Aluminium Window Profiles in Australia
1. What is the difference between an aluminium window profile and a complete aluminium window?
An aluminium window profile is the extruded aluminium cross-section that forms the structural skeleton of a window — including the frame, sash, mullion, and transom components. A complete window is the assembled product combining profiles with hardware, weatherseals, and glazing. Profiles determine what the finished window can achieve in terms of strength, thermal performance, maximum glass thickness, and weather resistance. Fabricators select specific profiles, cut them to size, and assemble them with glass and fittings to produce the final window unit you see installed in a wall.
2. Do I need thermally broken aluminium window profiles in Australia?
It depends on your climate zone and NCC compliance pathway. Thermally broken profiles are effectively mandatory in climate zones 6, 7, and 8 (alpine areas, most of Victoria, Tasmania, ACT, and highland NSW) where heating loads dominate energy calculations. Under NCC 2022, even projects in moderate zones 4 and 5 — including Sydney and Perth — increasingly require thermal breaks when large glazing areas are specified. A thermally broken profile reduces frame U-values by 70-85% compared to standard aluminium, which can be the difference between passing and failing energy compliance. Early energy modelling with your assessor will confirm whether your project needs them.
3. How do I choose the right aluminium window profile for coastal areas in Australia?
Coastal properties within one kilometre of breaking surf need profiles with marine-grade powder coating (Qualicoat Class 2 or Class 3) or anodising at 15-25 microns thickness. Standard architectural powder coat will chalk and degrade within a few seasons near salt. For frontline exposure within 300 metres of surf, duplex systems combining anodising with powder coat overtop offer 30+ years of protection. Beyond finish selection, coastal profiles should incorporate effective weep drainage to manage wind-driven rain, corrosion-resistant hardware, and thermally broken construction to meet energy compliance. Working with a project-capable supplier like MEICHEN who understands site-specific exposure requirements helps ensure correct specification from the outset.
4. What Australian standards apply to aluminium window profiles?
Multiple overlapping standards govern aluminium window profile performance. AS2047 is the primary standard covering structural adequacy, water penetration resistance, and air infiltration for all external windows. AS1288 governs glass selection and safety requirements. AS3959 applies in bushfire-prone areas, setting BAL-rated construction requirements where aluminium holds advantages over uPVC and timber at higher ratings. NCC Section J mandates energy efficiency via U-value and SHGC limits. WERS (Window Energy Rating Scheme) provides voluntary star ratings for whole-window energy performance. Profile geometry — depth, wall thickness, drainage design, and thermal break configuration — directly influences compliance outcomes across all these frameworks.
5. What profile depth and wall thickness do I need for my aluminium windows?
Standard residential aluminium profiles typically use 52-65mm depth with 1.6mm wall thickness, suitable for moderate openings up to about 1200mm wide in sheltered positions. Larger spans, higher wind exposures, or heavier glazing configurations require commercial-grade profiles at 65-100mm+ depth with 2.0-2.5mm walls. The correct specification depends on your opening size, design wind speed calculated from AS/NZS 1170.2 for your location and building height, and the glass weight your chosen glazing configuration demands. Cyclone-prone regions across northern Australia generally require minimum 65mm depth and 2.0mm walls to meet AS2047 deflection limits under cyclonic wind pressures.
More Window & Door Guides
