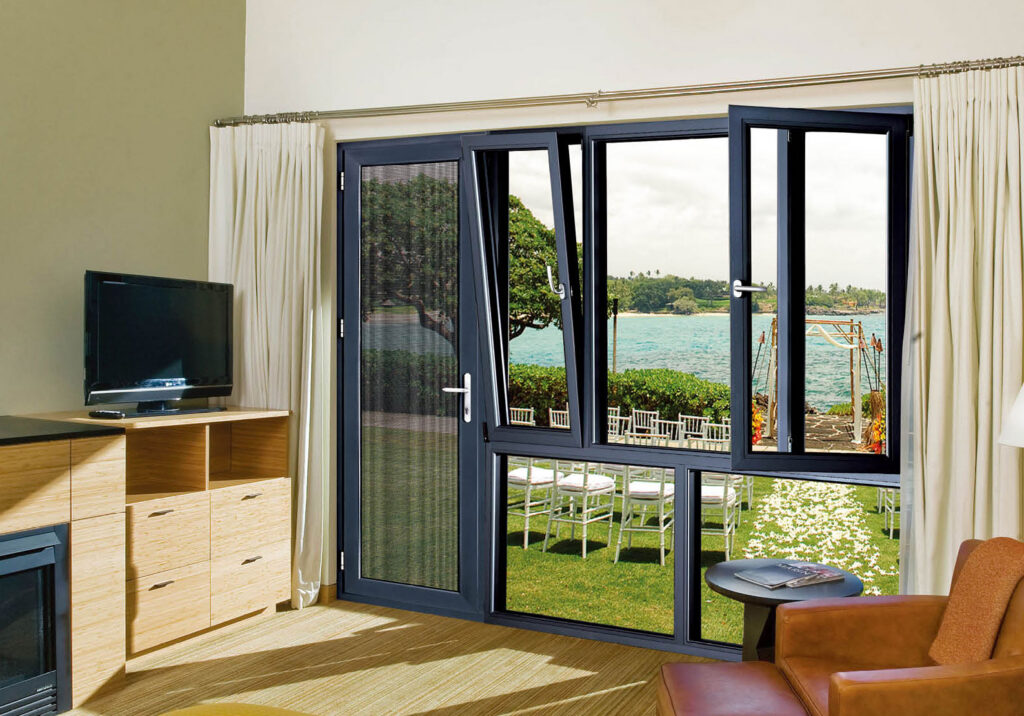

MC100 Tilt&Turn Window
Australian Tilt&Turn windows offer two opening modes—inward swinging or inward tilting from the top—operated by a single handle, combining ventilation, rain protection, security, and burglary resistance.
Quick Specs
MC100 Tilt&Turn Window Quick Specs
Fast product-selection information for early specification, enquiry and comparison.
Product Overview
Practical Aluminium Window System for Project-Based Supply
The MC100 Tilt&Turn Window is a thermally broken aluminum tilt-and-turn window system designed for projects requiring convenient access, strong daily performance, and flexible specifications. This system offers customized sizing, glazing options, frame colors, hardware choices, and technical drawing reviews based on project requirements.
- 200Pa water tightness
- 800Pa-2000Pa ultimate pressure
- 5+12A+5 and 6+12A+6 glazing options
Configurations
Product Configuration / Opening Diagrams
Opening diagrams help customers and project teams understand common sliding-window layouts, fixed/sliding combinations, section references and installation conditions before final shop drawings are confirmed.
System Data
System Parameters
System-level information is separated from glass, hardware and performance data so specifiers can review the product without mixing design choices and tested values.
| Series | MC100 |
|---|---|
| Product Category | Aluminium Tilt&Turn window system |
| System Type | Thermal break |
| Opening Method | Tilt & Turn |
| Frame / Sash Finish | Powder coated aluminium; standard and custom colours available |
| Project Customisation | Size, layout, glazing, hardware, colour and technical drawings should be confirmed from project drawings. |
Glass Data
Glass Specifications
Glass build-ups and U-value references are listed separately to support early comparison before the final project specification is confirmed.
| Available Glass Build-Up | 5mm+12Ar+5mm |
|---|---|
| Available Glass Build-Up | 6mm+12Ar+6mm |
| Glazing | Visible Trans | Winter Nighttime U-Value | Summer Daytime U-Value |
|---|---|---|---|
| 5+12A+5 | 63% | Winter Nighttime -1.85W/m²k | Summer Daytime – 1.81W/m²k |
| 6+12A+6 | 72% | Winter Nighttime -1.85W/m²k | Summer Daytime – 1.83W/m²k |
Customisation
Glass Configuration Options
These options can be selected according to project requirements and final specification.
Hardware
Hardware Options
Hardware options can be selected according to project requirements, operation preference, locking needs and the final window specification.
Standard Hardware Reference
- China brand
- Standard Equipment
Optional Hardware Upgrades
Colours
Standard Colour Options
Standard colour references are shown below. Custom powder coating can also be reviewed for project-specific requirements.
Performance
Maximum Performance
Performance data is separated from system structure and glass options for easier review.
| Water Tightness | 200Pa |
|---|---|
| Ultimate Pressure | 2000Pa with no collapse |
| Air Tightness | Sealed: At +75 Pa: 0.86 L/s·m² |
| Air Tightness | Sealed: At -75 Pa: 0.82 L/s·m² |
| Air Tightness | Overall Area: 6.15 m² |
Note: Final product performance should be confirmed by project requirements, selected glass, configuration, site conditions and applicable Australian standards.
