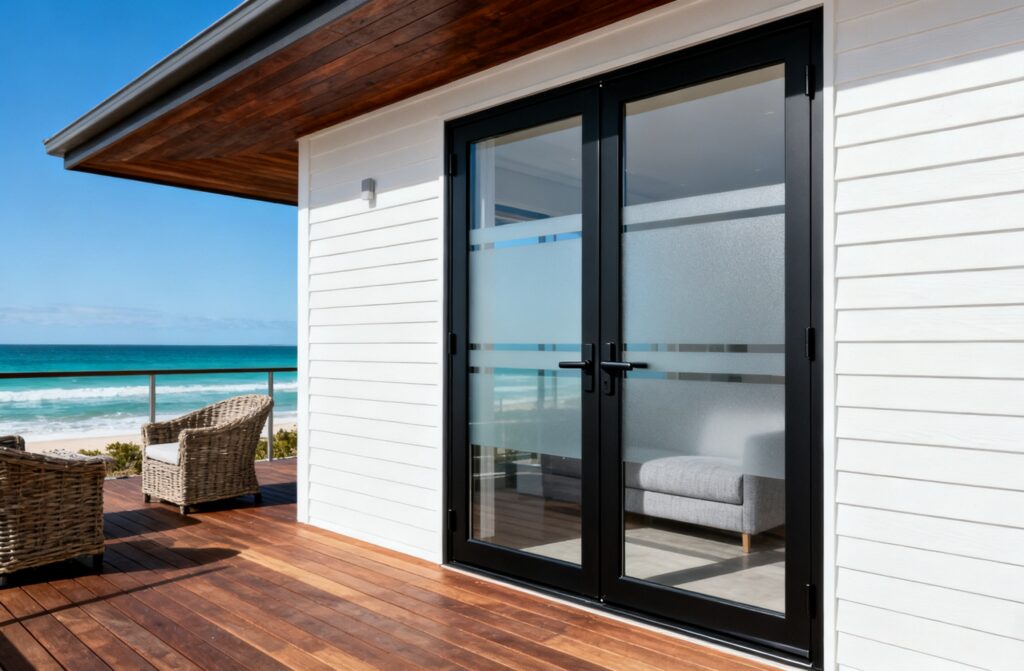

MA100 Hinged Door
Enjoy improvedventilation andbreathability with ourHinged doors, allowing forfull opening to achieveoptimal air circulation,especially beneficial duringthe summer months.
Quick Specs
MA100 Hinged Door Quick Specs
Fast product-selection information for early specification, enquiry and comparison.
Product Overview
Practical Aluminium Door System for Project-Based Supply
Our Hinged door designensures easy opening,providing convenient entryand exit for seamlesstransitions. Experience a wider fieldof vision with our Hingeddoors, as the leaves do notobstruct the view whenopened, enhancingtransparency in indoorspaces.
- Water Tightness : 200Pa
- Ultimate Pressure : 2000Pa with no collapse
- 5+12Ar+5 / 6+12Ar+6 / 8+9Ar+8
Configurations
Product Configuration / Opening Diagrams
Opening diagrams help customers and project teams understand typical sliding layouts, fixed/sliding combinations, section references and installation conditions before final shop drawings are confirmed.
System Data
System Parameters
Structural and system-level information is kept separate from glass, hardware and performance data so it is easier to review the product model.
| Series | MA100 |
|---|---|
| Product Category | MA100 Hinged Door system |
| System Type | NON-Thermal Break |
| Opening Method | |
| Frame / Sash Finish | Powder coated aluminium; standard and custom colours available |
| Project Customisation | Size, layout, glazing, hardware, colour and technical drawings should be confirmed from project drawings. |
Glass Data
Glass Specifications
Glass information is listed separately so build-ups and U-value references can be reviewed clearly.
| Available Glass Build-Up | 5mm+12Ar+5mm |
|---|---|
| Available Glass Build-Up | 6mm+12Ar+6mm |
| Available Glass Build-Up | 8mm+9Ar+8mm |
| Glazing | Visible Trans | Winter Nighttime U-Value | Summer Daytime U-Value |
|---|---|---|---|
| 5+12A+5 | 63% | Winter Nighttime -1.85W/m²k | Summer Daytime – 1.81W/m²k |
| 6+12A+6 | 72% | Winter Nighttime -1.85W/m²k | Summer Daytime – 1.83W/m²k |
Customisation
Glass Configuration Options
These options can be selected according to project requirements and final specification.
Hardware
Hardware Options
Hardware options can be selected according to project requirements, operation preference, locking needs and the final door specification.
Standard Hardware Reference
- China Brand Single Chain Winder
Optional Hardware Upgrades
- Doric DS1# 27001 Single chain winder
- Doric DS94 # 27001 Double chain winder
Colours
Standard Colour Options
Standard colour references are shown below. Custom powder coating can also be reviewed for project-specific requirements.
Performance
Maximum Performance
Performance data is separated from system structure and glass options for easier review.
| Water Tightness | 200Pa |
|---|---|
| Ultimate Pressure | 2000Pa with no collapse |
| Air Tightness : | Sealed: At +75 Pa: 0.52 L/s·m² |
| Air Tightness : | Sealed: At -75 Pa: 0.98 L/s·m² |
| Air Tightness : | Sealed: Overall Area: 6.15 m² |
Note: Final product performance should be confirmed by project requirements, selected glass, configuration, site conditions and applicable Australian standards.
