Product Detail

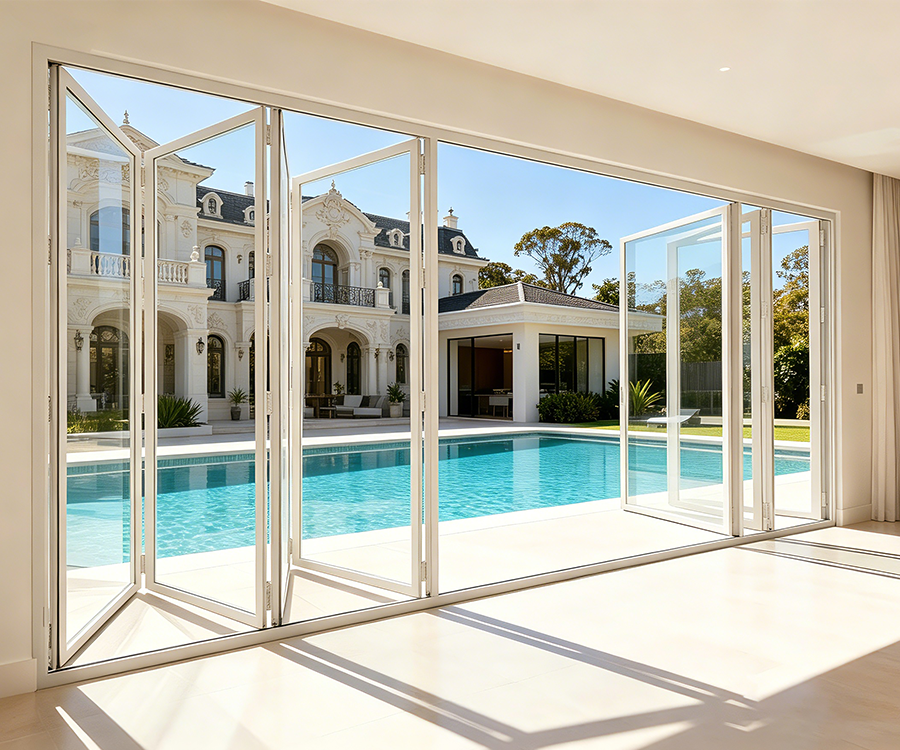

MC80 Bifold Door
Immerse Yourself in Bifold Door Beauty:Discover elegance in avariety of colors andstyles, enriching the visualappeal of yourenvironment. Effortless Ease of Use:Simplify your life with ourfolding doors, effortlesslysaving space and offeringsmooth operation foreveryday convenience.
Quick Specs
MC80 Bifold Door Quick Specs
Fast product-selection information for early specification, enquiry and comparison.
Product Overview
Practical Aluminium Door System for Project-Based Supply
Unrivaled Strength andReliability: Experience thelightweight yet sturdybuild of our doors,complete with thermalinsulation and moistureresistance for enduringcomfort. Hassle-Free Installationand Durability: Enjoy quickand easy setup with ourfolding doors, ensuringlong-lasting performanceand minimal maintenancefor years to come.
- 350Pa water tightness
- Positive:2000Pa / Negative:2000Pa
- 6+12A+6 and 8+18A+8 glazing options
Configurations
Product Configuration / Opening Diagrams
Opening diagrams help customers and project teams understand typical sliding layouts, fixed/sliding combinations, section references and installation conditions before final shop drawings are confirmed.
System Data
System Parameters
Structural and system-level information is kept separate from glass, hardware and performance data so it is easier to review the product model.
| Series | MC80 |
|---|---|
| Product Category | Bifold Door system |
| System Type | Thermal break |
| Opening Method | Sliding |
| Frame / Sash Finish | Powder coated aluminium; standard and custom colours available |
| Project Customisation | Size, layout, glazing, hardware, colour and technical drawings should be confirmed from project drawings. |
Glass Data
Glass Specifications
Glass information is listed separately so build-ups and U-value references can be reviewed clearly.
| Available Glass Build-Up | 6mm+21Ar+6mm |
|---|---|
| Available Glass Build-Up | 8mm+18Ar+8mm |
Customisation
Glass Configuration Options
These options can be selected according to project requirements and final specification.
Hardware
Hardware Options
Hardware options can be selected according to project requirements, operation preference, locking needs and the final door specification.
Standard Hardware Reference
- KSBG
Optional Hardware Upgrades
Colours
Standard Colour Options
Standard colour references are shown below. Custom powder coating can also be reviewed for project-specific requirements.
Performance
Maximum Performance
Performance data is separated from system structure and glass options for easier review.
| Water Tightness | 350Pa |
|---|---|
| Ultimate Pressure | Positive: 2000Pa / Negative: 2000Pa |
| Air Tightness | Sealed: Positive: 75Pa – 57.39Ls⁻¹ |
| Air Tightness | Sealed: Negative: 75Pa – 84.84Ls⁻¹ |
| Air Tightness | Unsealaed: Positive: 75Pa – 70.79Ls⁻¹ |
| Air Tightness | Unsealaed: Negative: 75Pa – 140.58Ls⁻¹ |
| Air Tightness | Net Leakage: Positive: 75Pa – 13.40Ls⁻¹ |
| Air Tightness | Net Leakage: Negative: 75Pa – 55.74Ls⁻¹ |
Note: Final product performance should be confirmed by project requirements, selected glass, configuration, site conditions and applicable Australian standards.
Applications
Where MC80 Bifold Door Is Used
