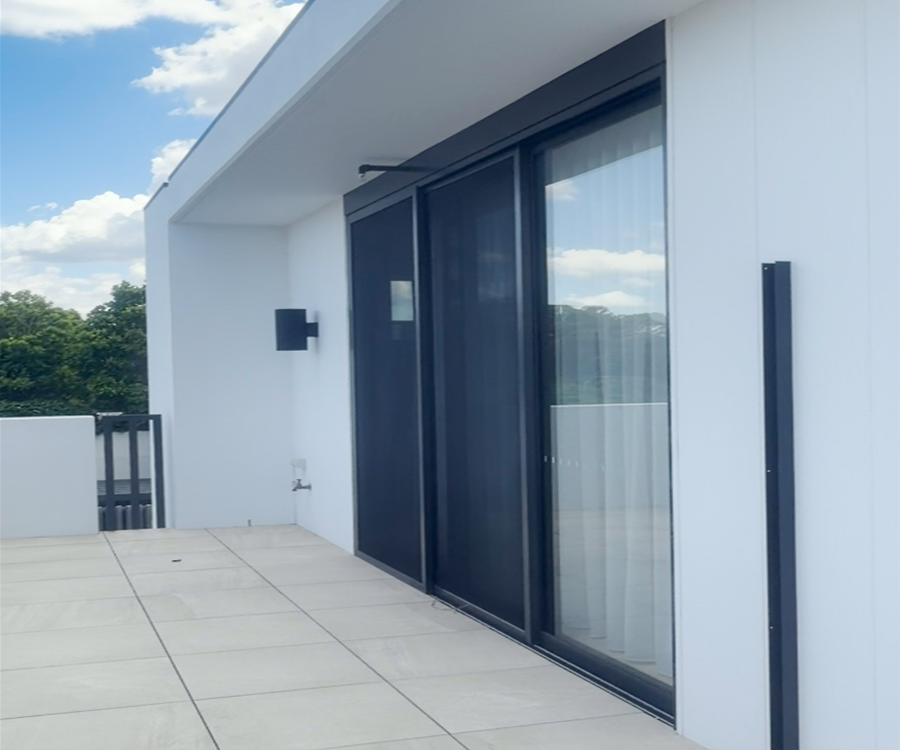

MA100 Sliding Door
A custom aluminium sliding door system for Australian residential, apartment and commercial projects, with glazing, hardware, colour and configuration options.
Quick Specs
MA100 Sliding Door Quick Specs
Fast product-selection information for early specification, enquiry and comparison.
Product Overview
Practical Aluminium Door System for Project-Based Supply
MA100 Sliding Door is a non-thermal break aluminium sliding door system suited to projects that need smooth access, strong everyday performance and flexible specification. The system can be reviewed with custom panel layouts, glass options, frame colours, hardware selections and technical drawings according to project requirements.
- 150 / 205 / 225 series options
- Custom sizes and panel layouts
- Suitable for patios and balcony openings
Configurations
Product Configuration / Opening Diagrams
Opening diagrams help customers and project teams understand typical sliding layouts, fixed/sliding combinations, section references and installation conditions before final shop drawings are confirmed.
2 Panel Sliding Door
Typical two-panel sliding layout for residential patios, balconies and apartment openings.
Multi-Panel / Custom Layout
Panel count, track layout and fixed/sliding combinations can be reviewed from drawings or door schedules.
Section & Threshold Detail
Head, sill, jamb, interlock, drainage and threshold details should be confirmed for the project.
Installation Detail
Frame fixing, wall opening and installation coordination can be supported with shop drawings.
System Data
System Parameters
Structural and system-level information is kept separate from glass, hardware and performance data so it is easier to review the product model.
| Series | MA100 |
|---|---|
| Product Category | Aluminium sliding door system |
| Thermal System | Non-thermal break aluminium system |
| Opening Method | Sliding panel system; fixed + sliding combinations available |
| Configuration Method | Configuration drawings can show panel layout, opening direction, fixed/sliding combinations, track arrangement and project notes. |
| Frame / Panel Finish | Powder coated aluminium; standard and custom colours available |
| Hardware | D lock, Doric D lock and double hook lock options |
| Project Customisation | Size, layout, glazing, hardware, colour and technical drawings should be confirmed from project drawings. |
Glass Data
Glass Specifications
Glass information is listed separately so build-ups and U-value references can be reviewed clearly.
| Available Glass Build-Up | 5mm+15Ar+5mm |
|---|---|
| Available Glass Build-Up | 6mm+15Ar+6mm |
| Available Glass Build-Up | 8mm+9Ar+8mm |
| Glazing | Visible Trans | Winter Nighttime U-Value | Summer Daytime U-Value |
|---|---|---|---|
| 5+12A+5 | 63% | 1.85 W/mu00b2K | 1.81 W/mu00b2K |
| 8+12A+8 | 72% | 1.85 W/mu00b2K | 1.83 W/mu00b2K |
Customisation
Glass Configuration Options
These options can be selected according to project requirements and final specification.
Hardware
Hardware Options
Hardware options can be selected according to project requirements, operation preference, locking needs and the final door specification.
Standard Hardware Reference
- China brand D lock
Optional Hardware Upgrades
- Doric D lock DS2130
- Doric D lock DS3130
- China brand double hook lock + 300 handle
- Project-specific handle options
Colours
Standard Colour Options
Standard colour references are shown below. Custom powder coating can also be reviewed for project-specific requirements.
Performance
Maximum Performance
Performance data is separated from system structure and glass options for easier review.
| Water Tightness | 300Pa |
|---|---|
| Ultimate Pressure | Positive +2000Pa / Negative -2000Pa |
| Air Tightness | Sealed |
| Air Tightness u2014 Positive | 75Pa u2013 5.61 Lsu207bu00b9 |
| Air Tightness u2014 Negative | 75Pa u2013 5.73 Lsu207bu00b9 |
Note: Final product performance should be confirmed by project requirements, selected glass, configuration, site conditions and applicable Australian standards.
Technical Files
Technical Drawings & Downloads
Technical drawings and datasheets can support system selection, quotation, project review and construction coordination.
Opening Configuration Drawings
Opening and elevation diagrams can help confirm panel layouts, track arrangements and fixed/sliding combinations.
System Section Details
Head, sill, jamb, interlock, threshold and drainage references can support technical review.
Installation / Shop Drawing References
Project-specific technical files or PDF references can support construction coordination and final shop drawings.
Applications
Where MA100 Sliding Door Is Used
Related Products
Related Products & Systems
FAQ
MA100 Sliding Door FAQ
What type of projects is the MA100 Sliding Door suitable for?
MA100 Sliding Door is suitable for residential homes, apartment balconies, townhouse projects, patios and selected commercial glazed openings where a practical non-thermal break sliding door system is required.
Can the MA100 Sliding Door be customised by size and panel layout?
Yes. Door size, panel layout, track arrangement and fixed/sliding combinations can be reviewed according to architectural drawings, door schedules and project requirements.
What glass options can be used with the MA100 Sliding Door?
Available options can include clear glass, fluted glass, obscured glass, ultra clear glass, Low-E glass, custom coating options and double glazing build-ups such as 5mm+15Ar+5mm, 6mm+15Ar+6mm and 8mm+9Ar+8mm.
What frame colours are available?
Standard colour references include Pearl White, Monument and Black Mall. Other powder coating colours can also be customised for project requirements.
What hardware options are available?
Hardware references include China brand D lock, Doric D lock DS2130, Doric D lock DS3130 and double hook lock options. Final hardware selection can be confirmed during project specification.
Can M&C provide technical drawings for this sliding door?
Yes. M&C can support project review with configuration diagrams, section details and shop drawing coordination based on the selected door system and project requirements.
