MA100 Sliding Window
Operating our slidingwindows is effortless, justa simple push opens orcloses them smoothly. Enjoy superior sealingwith our sliding windows,providing both thermaland sound insulation.
Quick Specs
MA100 Sliding Window Quick Specs
Fast product-selection information for early specification, enquiry and comparison.
Product Overview
Practical Aluminium Window System for Project-Based Supply
Enhance security withsliding windows that aremore resistant to forcedentry, offering increasedsafety for homes andoffices.
- Sliding Window 2 Tracks
- with fixed high-transparency screen
- Without timber reveal (optional)
Configurations

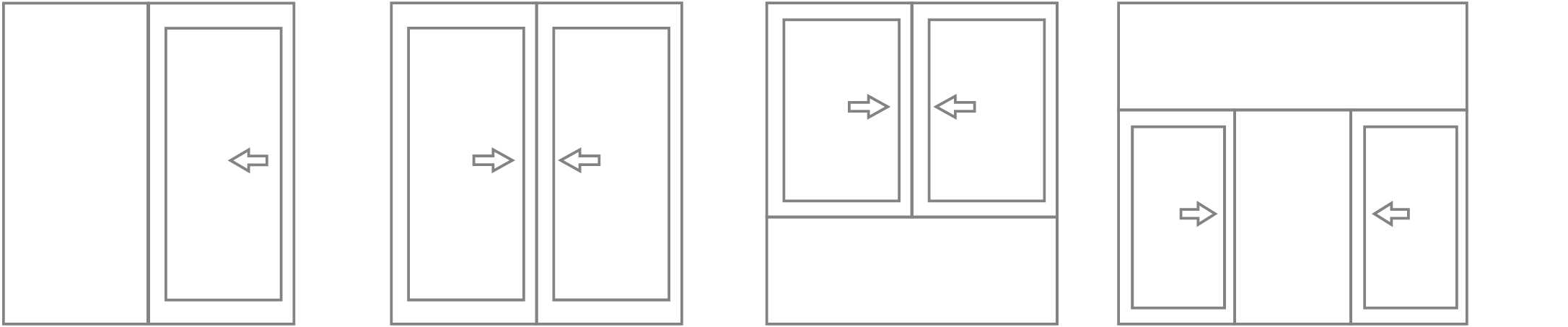

Product Configuration / Opening Diagrams
Opening diagrams help customers and project teams understand common sliding-window layouts, fixed/sliding combinations, section references and installation conditions before final shop drawings are confirmed.
System Data
System Parameters
System-level information is separated from glass, hardware and performance data so specifiers can review the product without mixing design choices and tested values.
| Series | MA100 |
|---|---|
| Product Category | Aluminium Sliding Window system |
| System Type | Non- Thermal Break |
| Opening Method | Sliding |
| Frame / Sash Finish | Powder coated aluminium; standard and custom colours available |
| Project Customisation | Size, layout, glazing, hardware, colour and technical drawings should be confirmed from project drawings. |
Glass Data
Glass Specifications
Glass build-ups and U-value references are listed separately to support early comparison before the final project specification is confirmed.
| Available Glass Build-Up | 5mm+12Ar+5mm |
|---|---|
| Available Glass Build-Up | 6mm+12Ar+6mm |
| Available Glass Build-Up | 8mm+9Ar+8mm |
| Glazing | Visible Trans | Winter Nighttime U-Value | Summer Daytime U-Value |
|---|---|---|---|
| 5+12A+5 | 63% | Winter Nighttime -1.85W/m²k | Summer Daytime – 1.81W/m²k |
| 6+12A+6 | 72% | Winter Nighttime -1.85W/m²k | Summer Daytime – 1.83W/m²k |
Customisation
Glass Configuration Options
These options can be selected according to project requirements and final specification.
Hardware
Hardware Options
Hardware options can be selected according to project requirements, operation preference, locking needs and the final window specification.
Standard Hardware Reference
- China brand flush lock
Optional Hardware Upgrades
Colours
Standard Colour Options
Standard colour references are shown below. Custom powder coating can also be reviewed for project-specific requirements.
Performance
Maximum Performance
Performance data is separated from system structure and glass options for easier review.
| Water Tightness | 300Pa |
|---|---|
| Ultimate Pressure | Positive – 2000Pa / Negative – 2000Pa |
| Air Tightness | Sealed : Positive – 75Pa – 6.07Ls⁻¹ |
| Air Tightness | Sealed : Negative – 75Pa – 5.06Ls⁻¹ |
| Air Tightness |
Note: Final product performance should be confirmed by project requirements, selected glass, configuration, site conditions and applicable Australian standards.
Applications
Where MA100 Sliding Window Is Used
