What Aluminium Window Thickness Actually Refers To
Search for aluminium window thickness and you will find two very different numbers thrown around, often without any explanation of which is which. That ambiguity causes real problems on building sites and in procurement meetings across Australia every week.
What Does Aluminium Window Thickness Mean
The term refers to two distinct measurements. The first is wall thickness — the actual gauge of the aluminium extrusion walls, typically ranging from 1.2mm to 2.0mm for residential and commercial applications. The second is profile depth, meaning the front-to-back dimension of the entire frame section, which commonly spans 50mm to 104mm depending on the system.
Aluminium window thickness can mean two things: the wall thickness of the extrusion (1.2mm–2.0mm) or the overall profile depth of the frame (40mm–104mm). Confusing the two leads to specification errors, failed inspections, and costly replacements.
A supplier quoting a “60mm aluminium window” is talking about profile depth. The aluminium walls inside that frame might only be 1.4mm thick. Both numbers matter, but they control entirely different performance outcomes.
Why This Measurement Matters for Your Project
Wall thickness determines structural integrity — how well your aluminium window frames resist wind pressure, support hardware, and maintain their shape over decades. Profile depth governs what glazing you can fit, how effective the thermal break can be, and the visual proportions of the window on your facade. Specify the wrong one and you risk either a window that flexes under load or one that cannot accommodate the double glazing your energy rating demands.
Who Needs to Understand Thickness Specifications
Architects writing schedules, builders checking deliveries, building certifiers inspecting compliance, and homeowners comparing quotes all benefit from understanding window frame thickness. If you have ever wondered how thick are window frames or why two seemingly identical alu windows carry different price tags, the answer almost always traces back to these millimetres. This guide breaks down the engineering, the standards, and the practical decisions so you can specify with confidence rather than guesswork.
Wall Thickness vs Profile Depth and Why People Confuse Them
These two measurements live inside the same window frame, yet they describe completely different things. One is about how much metal sits between you and structural failure. The other is about how much space the frame occupies front-to-back. Mixing them up is surprisingly easy when aluminium window profiles are described using a single number in a supplier’s catalogue.
Wall Thickness of the Aluminium Extrusion
Wall thickness is the gauge of the aluminium itself — the distance between the inner and outer surfaces of each extruded wall within the profile. Picture slicing through a window frame cross-section: you would see hollow chambers bounded by thin aluminium walls. Those walls are typically 1.2mm to 2.0mm thick. This dimension controls how much load the frame can carry, how well it resists deflection under wind pressure, and whether hardware fixings have enough material to grip into over time.
Overall Profile Depth and Frame Width
Profile depth is the front-to-back measurement of the entire frame section — from the exterior face to the interior face. When a manufacturer advertises a “60mm aluminum window profile,” they mean the frame occupies 60mm of depth in your wall opening. That depth determines glazing capacity (single, double, or triple glazed units), thermal break width, and the visual bulk of the frame on your elevation. A deeper window aluminum profile accommodates thicker insulated glass units and wider polyamide thermal breaks, improving energy performance.
| Characteristic | Wall Thickness | Profile Depth |
|---|---|---|
| What it measures | Gauge of the aluminium extrusion walls | Front-to-back dimension of the entire frame |
| Typical range | 1.2mm – 2.0mm | 40mm – 104mm |
| Primary function | Structural integrity and hardware support | Glazing capacity and thermal break accommodation |
| How it is measured | Vernier calipers on exposed edge or ultrasonic gauge through coating | Tape measure or digital caliper across the frame section |
| What happens if under-specified | Frame deflection, seal failure, hardware loosening | Cannot fit required glazing or thermal break width |
How Confusing These Measurements Causes Specification Errors
The confusion typically plays out like this: a builder sees “1.4mm” on one quote and “60mm” on another, assumes both describe the same property, and selects based on whichever number looks larger. The result might be a frame with generous depth but walls too thin for the wind zone, or walls thick enough structurally but a profile too shallow for the double-glazed IGU the energy assessment requires.
Specification documents that list only one figure without clarifying which measurement it represents invite this error. When reviewing aluminium window profiles for any Australian project, always confirm both numbers independently. Wall thickness tells you whether the frame will stand up to its environment. Profile depth tells you what you can put inside it. Getting one right while ignoring the other is how windows pass the quote stage but fail on site.

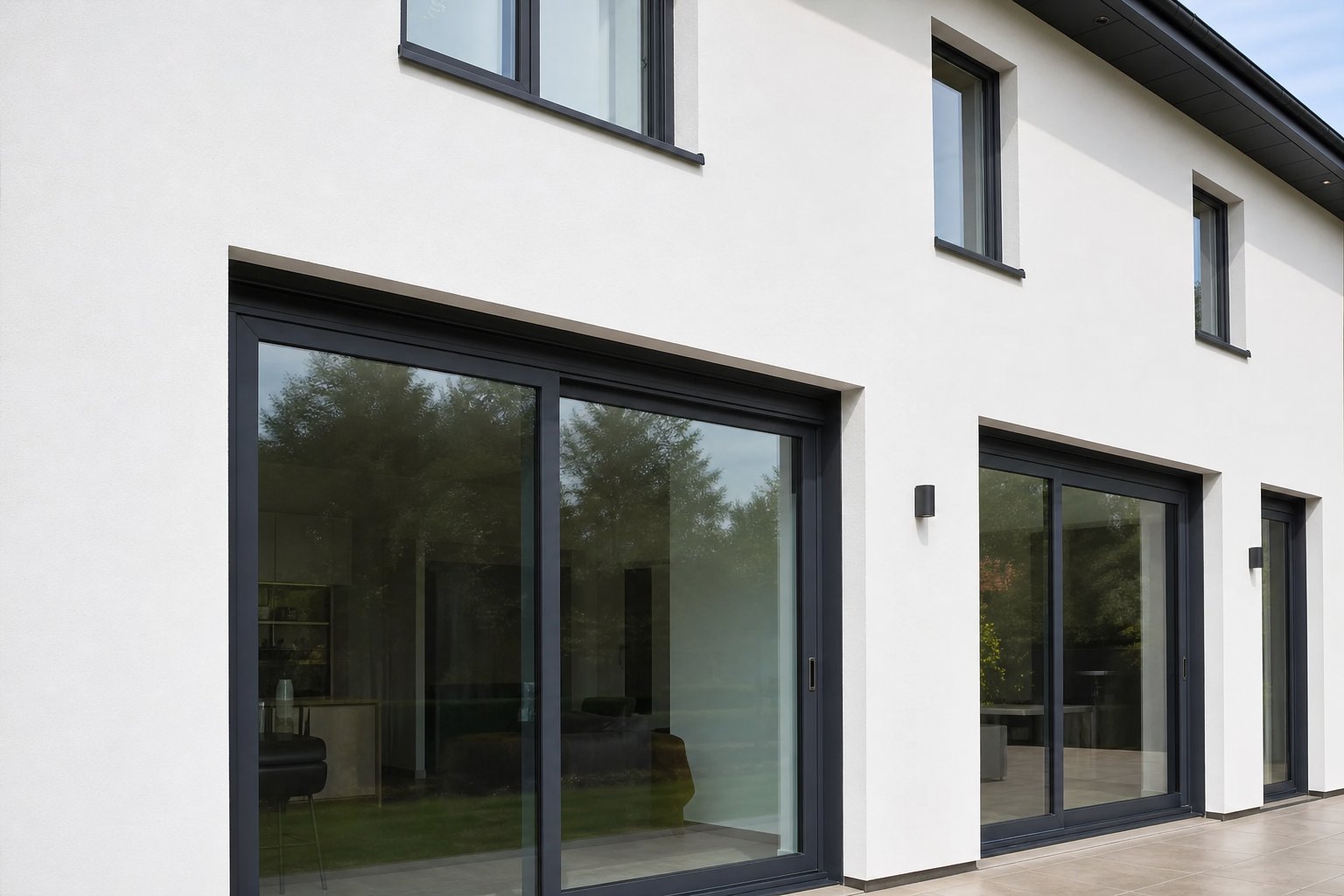

Standard Thickness Grades Mapped to Real Applications
Five wall thickness grades account for the vast majority of aluminium window systems installed across Australia. Each grade exists for a reason — not because manufacturers felt like offering variety, but because different buildings place fundamentally different structural demands on their frames. Choosing between them comes down to engineering, not preference.
The Five Common Wall Thickness Grades
Aluminium extrusions for windows and doors are produced in a handful of standard wall thicknesses. While custom gauges exist for specialty projects, these five cover residential, commercial, and industrial applications in standard aluminum window sizes.
| Wall Thickness | Typical Application | Maximum Recommended Span | Relative Cost |
|---|---|---|---|
| 1.2mm | Light residential — internal partitions, servery windows, low-wind-zone openings under 1000mm wide | ~800mm unsupported | $ |
| 1.4mm | Standard residential — casement, awning, and sliding windows in wind regions A and B | ~1200mm unsupported | $$ |
| 1.6mm | Enhanced residential and light commercial — mid-rise apartments, coastal zones, larger openings | ~1500mm unsupported | $$$ |
| 1.8mm | Commercial and high-wind — shopfronts, multi-storey facades, cyclone-prone regions | ~1800mm unsupported | $$$$ |
| 2.0mm | Industrial and structural — large-format sliding doors, high-rise curtain wall framing, stacking systems | ~2200mm+ unsupported | $$$$$ |
These spans are indicative and assume a single-span condition with standard 6063-T5 alloy. Actual allowable spans depend on profile geometry, alloy temper, design wind pressure, and deflection limits set by the applicable standard. A 1.4mm wall in a well-designed multi-chamber profile can outperform a 1.6mm wall in a simpler section — geometry matters as much as raw gauge.
Matching Thickness to Application Type
In Australia, 1.4mm is the baseline. It represents the minimum measured wall thickness for window profiles under relevant manufacturing standards, and it handles the structural demands of most single-storey and low-rise residential projects in wind regions A and B comfortably. The majority of best aluminium windows installed in suburban homes across Sydney, Melbourne, and Adelaide sit at this grade.
Step up to 1.6mm and you are covering mid-rise residential builds, homes in exposed coastal locations where salt air and higher wind pressures coincide, or simply larger openings where the span between fixing points increases deflection risk. Builders working on projects in wind region C or specifying windows wider than about 1200mm will typically land here.
At 1.8mm and 2.0mm, the applications shift decisively toward commercial and high-demand residential. Large-format folding windows generally require 1.8mm minimum, while heavy-duty lift-and-slide doors and high-rise installations push into 2.0mm territory and beyond. These thicker profiles carry the weight of oversized glass panels and resist the wind pressures found at upper storeys or in cyclone-rated regions of northern Queensland and the Northern Territory.
When Minimum Code Thickness Is Not Enough
Building codes set a floor, not a ceiling. Under AS 2047, windows must pass structural adequacy and water penetration testing at the design wind pressure for their specific location — but the standard does not prescribe exactly how thick the aluminium must be to achieve that. It is performance-based, meaning the manufacturer must prove the window works rather than simply ticking a thickness box.
In practice, this means project conditions regularly push thickness above the minimum. A few common scenarios:
- Homes in wind region D (cyclonic) where design pressures exceed what a 1.4mm profile can handle without excessive deflection
- Large openings — anything beyond about 1500mm wide in a single span — where bending moment increases with the square of the span length
- Upper storeys of multi-level homes where wind speed increases with height above ground
- Coastal sites subject to both higher wind loads and accelerated corrosion, where starting with thicker material provides a corrosion allowance over the window’s service life
Deflection limits are the engineering constraint that drives most thickness upgrades. Australian practice typically limits frame deflection to span/150 for serviceability — meaning a 1500mm span should not flex more than 10mm under design wind load. Thicker walls increase the profile’s moment of inertia, directly reducing deflection under the same pressure. When a structural calculation shows a 1.4mm section exceeding that limit, the solution is either a thicker wall, a deeper profile, or both.
Selecting the right grade is not about spending more for the sake of it. It is about matching the aluminium to the forces it will face for the next 30 to 50 years. The alloy behind that wall thickness plays an equally critical role in determining whether a given gauge is sufficient — a relationship worth examining closely.
How Alloy Grade Determines the Thickness You Need
Not all aluminium is created equal. Two extrusions with identical wall thickness can perform very differently under load if they are made from different alloys or heat treatments. The alloy grade sets the baseline strength of the metal itself, which directly influences how thick those walls need to be to meet structural requirements.
Common Aluminium Alloys Used in Window Profiles
The 6000 series dominates aluminium profiles for windows because these alloys combine good strength, corrosion resistance, and workability. Within that family, a handful of alloy-temper combinations account for nearly every aluminum window frame profile on the market:
- 6063-T5 — Tensile strength around 150–185 MPa. The easiest to extrude, producing the smoothest surface finish. Ideal for standard residential windows, decorative trims, and any application where complex hollow shapes or anodised finishes matter. The most cost-effective option and the industry default for architectural extrusions.
- 6063-T6 — Tensile strength around 190–215 MPa. Same alloy, but a more intensive heat treatment (solution treatment followed by water quench and artificial ageing) pushes strength roughly 15–25% higher than T5. Suits applications needing a performance boost without changing alloy chemistry — mid-span residential windows, light commercial facades.
- 6060-T6 — Tensile strength around 190 MPa. Common in European-origin systems, very similar to 6063 in extrudability and finish quality. Often encountered in imported thermally broken aluminium profile for windows systems sold in Australia.
- 6061-T6 — Tensile strength around 290 MPa, approximately 50% stronger than 6063-T6. Reserved for high-load structural members, large-format sliding doors, and situations where reducing frame bulk is critical. Harder to extrude, limited to simpler cross-sections, and produces a rougher surface finish.
How Alloy Strength Relates to Required Wall Thickness
The relationship is straightforward: higher yield strength means the metal resists bending more effectively per millimetre of thickness. A 6061-T6 profile with 1.4mm walls can carry roughly the same wind load as a 6063-T5 profile at 1.8mm or more, because the underlying material is so much stronger. In engineering terms, the allowable stress in the deflection calculation is higher, so less cross-sectional area is needed to stay within limits.
This matters practically when architects want slimmer sight lines on large openings. Specifying a stronger alloy lets the aluminium profile for windows achieve the required structural capacity without bulking up the frame — preserving that clean, minimal aesthetic that contemporary design demands.
Trade-Offs Between Alloy Grade and Profile Design
Jumping to a higher-strength alloy is not a free upgrade. Several trade-offs shape the decision:
- Extrudability — 6063 flows through complex die geometries with ease, enabling multi-chamber hollow profiles with thin internal webs. 6061 struggles with intricate shapes and is largely limited to solid or simple hollow sections.
- Surface finish — 6063 produces a smooth, fine-grained surface that anodises beautifully and accepts powder coating evenly. 6061 tends toward a coarser finish, which can show through thin coatings.
- Cost and availability — 6063-T5 extrusions are commodity items with short lead times. 6061-T6 window profiles are specialty orders in Australia, carrying higher material cost and longer procurement timelines.
- Deformation risk — The aggressive water quench required for T6 temper can warp thin-walled or hollow profiles. Manufacturers sometimes avoid specifying T6 on complex shapes for this reason, preferring to achieve adequate performance through profile geometry instead.
For most Australian residential projects, 6063-T5 at 1.4mm delivers the right balance of strength, finish quality, and economy. Stepping up to 6063-T6 handles moderate increases in load or span without changing the profile tooling. Reaching for 6061-T6 only makes sense when the structural maths demand it — typically on large-format commercial glazing or oversized residential openings where every millimetre of sight line reduction counts.
The alloy sets what the metal can handle. But the type of window — casement, sliding, fixed, louvre — determines where and how those forces concentrate, which is what ultimately dictates the minimum thickness for each specific application.

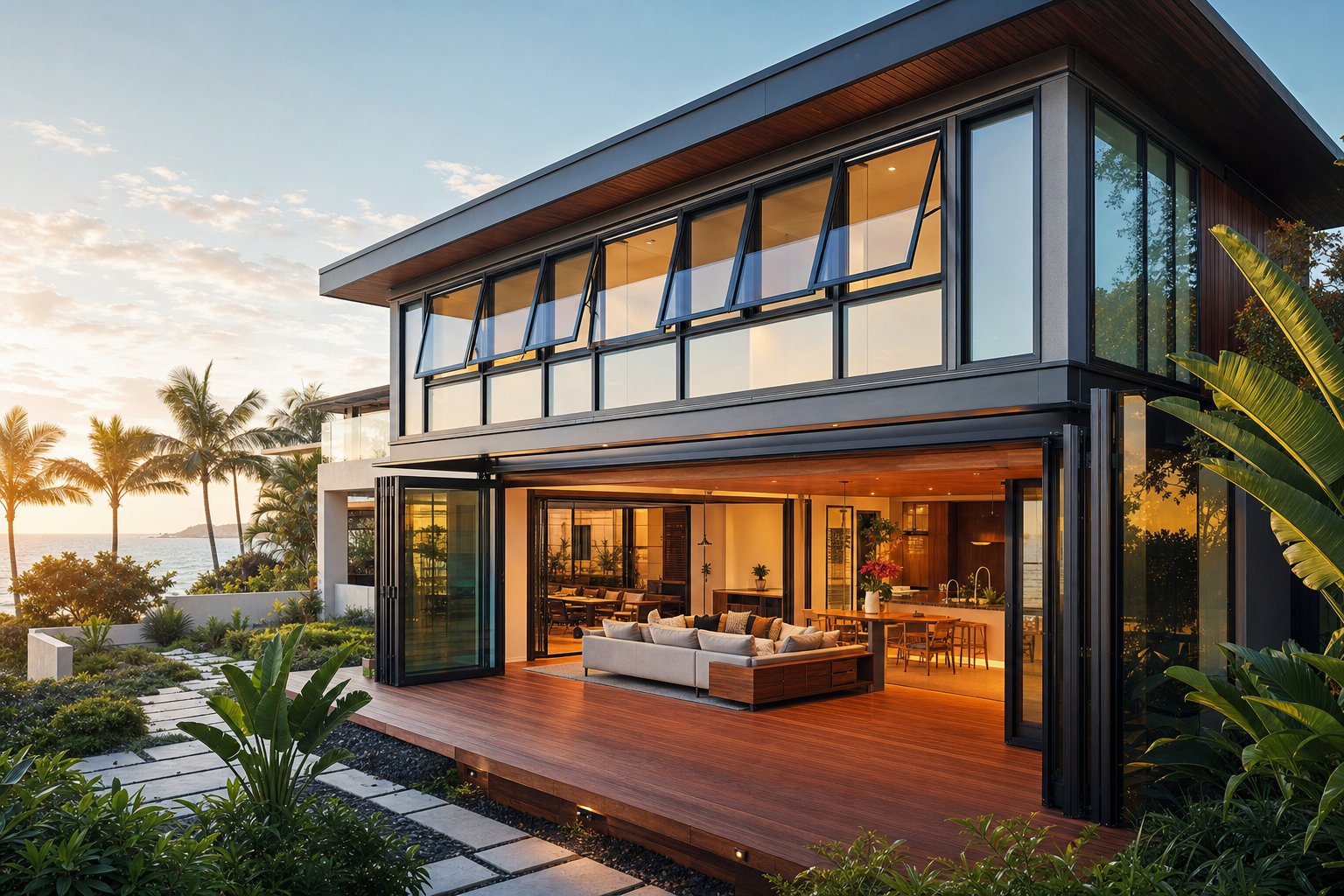

Minimum Thickness Requirements by Window Type
A casement window and a sliding door might sit in the same wall opening, yet the forces acting on their frames could not be more different. One hangs from hinges and catches wind across an unsupported sash. The other carries hundreds of kilograms on rollers while maintaining track alignment over a multi-metre span. These mechanical realities mean that aluminium windows and doors cannot share a single thickness specification — each type concentrates stress in different places and demands a profile engineered for that specific load path.
Casement and Awning Window Thickness Requirements
Casement windows swing outward on side-mounted hinges, exposing the full sash area to wind pressure. Every gust transfers load through the hinge fixings and into the frame jamb. If the aluminium walls are too thin, the screw threads holding those hinges gradually strip or the jamb itself deforms around the fixing point. For standard residential casements up to about 1200mm tall, 1.4mm wall thickness handles the load comfortably in wind regions A and B. Taller sashes or exposed sites push that requirement to 1.6mm.
Awning windows face a similar challenge with an added twist. The top-hung hinge configuration means the full weight of the sash hangs from the upper rail when open, creating a concentrated downward force at each hinge point. That stress concentration, combined with wind load when the window is closed, makes awning windows slightly more demanding than casements of equivalent size. Friction stay hardware also needs adequate wall material to maintain tension over years of operation without wallowing out the fixing holes.
Sliding Window and Door Profile Demands
Sliding systems face a different structural equation. The sash does not hang from hinges — it rides on rollers along a track. Here, the critical concern is track rigidity. A thin-walled bottom rail that deflects under the weight of a glazed panel causes rollers to bind, seals to lose contact, and the window to become progressively harder to operate.
For a standard aluminium door window in a sliding configuration, the bottom track and interlock stiles need enough material to resist both vertical load from the panel weight and lateral pressure from wind. Residential sliding windows typically require 1.4mm minimum, but large-format sliding doors — particularly those spanning 2000mm or more per panel — jump to 1.8mm to 2.0mm to maintain track straightness and roller alignment under load. The heavier the glass, the thicker the rail needs to be.
Fixed, Louvre, and Specialty Window Considerations
Fixed windows are the least demanding type structurally. With no moving parts, no hinges to support, and no operational hardware to mount, the frame simply needs to resist wind pressure and hold the glazing in place. This allows specifiers to use thinner profiles — sometimes 1.2mm in small, sheltered openings — without compromising performance. The savings are modest per unit but add up across a project with dozens of fixed lites.
Aluminium louvre windows sit at the other end of the complexity spectrum. Each blade pivots on small pins or clips mounted into the frame stiles, creating multiple point loads along the height of the opening. The stile walls must be thick enough to hold those fixings securely while resisting the cumulative wind load across all blades. A minimum of 1.4mm is standard, with 1.6mm preferred for louvre banks taller than 1200mm or in exposed locations.
Large-format stacking and bi-fold doors represent the heaviest-duty application for aluminium door with window configurations. Panel weights can exceed 100kg each, and the combined span of a four-panel bi-fold might reach 4800mm or more. These systems routinely specify 2.0mm wall thickness in the track, stiles, and head — sometimes thicker — to handle both the dead load of the panels and the live load of wind pressure across that enormous opening.
| Window Type | Recommended Minimum Wall Thickness | Critical Stress Points | Typical Profile Depth |
|---|---|---|---|
| Casement | 1.4mm (standard) / 1.6mm (large or exposed) | Hinge fixings, jamb around hardware | 52mm – 72mm |
| Awning | 1.4mm – 1.6mm | Top-hung hinge points, friction stay mounts | 52mm – 72mm |
| Sliding window | 1.4mm | Bottom track, interlock stile | 50mm – 80mm |
| Sliding door | 1.8mm – 2.0mm | Bottom rail/track, head rail, lock stile | 80mm – 104mm |
| Fixed | 1.2mm – 1.4mm | Glazing rebate, perimeter seal | 44mm – 60mm |
| Louvre | 1.4mm – 1.6mm | Blade pivot fixings along stile height | 52mm – 70mm |
| Bi-fold / stacking door | 2.0mm+ | Track, hinge jamb, panel stiles | 90mm – 120mm |
These figures assume standard 6063-T5 alloy and typical Australian wind regions. Projects in cyclone-rated areas or with oversized panels will push each figure upward.
Because each window type places stress in different locations, suppliers who offer project-specific thickness configurations across their full range — casement, sliding, awning, fixed, and louvre — give specifiers far more flexibility than those offering a one-size-fits-all profile. For Australian residential and commercial builds, MEICHEN’s aluminium windows range provides type-specific profile options engineered to match the structural demands of each configuration, making it a practical starting point when exploring thickness requirements across multiple window types on a single project.
Matching thickness to window type gets you structurally sound frames. But structural adequacy is only one piece of the compliance puzzle — regional building standards define the testing regime those frames must survive, and the requirements vary significantly depending on where in the world your project sits.
Building Standards and Regional Thickness Requirements
Every country approaches aluminium window thickness regulation differently. Some prescribe exact minimums in black and white. Others — including Australia — take a performance-based path that leaves the thickness decision to engineering rather than a lookup table. If you are specifying aluminium systems for a project, the applicable building standard is your starting point, not a supplier’s catalogue.
Australian Standard AS2047 and Performance-Based Requirements
Australia’s approach is distinct. AS 2047 does not state a minimum wall thickness for aluminium windows doors. Instead, it requires every window to pass structural adequacy testing and water penetration resistance testing at the design wind pressure specific to its installation location and height. The standard references the National Construction Code and wind loading calculations from AS/NZS 1170.2 to determine what pressure each window must withstand.
In practical terms, this means thickness is performance-derived. A manufacturer can use 1.2mm walls if their profile geometry and alloy deliver adequate performance at the required test pressure. Equally, a poorly designed profile might fail at 1.6mm. The standard does not care how you get there — it cares whether the window survives the test without exceeding deflection limits, losing seal integrity, or allowing water ingress.
This performance-based philosophy gives Australian manufacturers design freedom but places the burden of proof squarely on them. Every window must carry a performance label showing its wind and water ratings in Pascals, backed by testing from a NATA-accredited laboratory. For specifiers, the implication is clear: do not accept a wall thickness figure alone as evidence of compliance. Ask for the test certificate matching your project’s wind classification.
European EN Standards and Classification Systems
Europe uses a layered system. BS EN 14351-1 is the harmonised product standard under the Construction Products Regulation, setting out performance characteristics that aluminium windows doors must declare for CE marking. It does not prescribe wall thickness directly either, but it references two classification standards that shape thickness decisions indirectly.
EN 12210 classifies windows by wind load resistance, grouping products from Class 1 (lowest pressure) through Class 5 and beyond based on test results from EN 12211. EN 13115 then classifies mechanical strength — resistance to static torsion, soft and heavy body impact, and repeated opening and closing. Together, these classifications determine the structural demands the profile must meet, which in turn drives wall thickness selection.
European-origin aluminium systems — including brands like Schuco, Reynaers, and aluprof windows — typically specify 1.5mm minimum wall thickness for their residential profiles and 1.8mm or above for commercial-grade sections. These figures are not mandated by the EN standards themselves but represent what manufacturers need to achieve the higher wind and mechanical classifications that specifiers routinely demand across the UK and continental Europe.
Comparing Global Minimum Thickness Mandates
Outside Australia and Europe, several major markets take a more prescriptive approach, stating explicit minimum wall thicknesses in their national standards.
| Standard | Region | Min. Wall Thickness (Residential) | Min. Wall Thickness (Commercial) | Key Testing Requirements |
|---|---|---|---|---|
| AS 2047 | Australia / NZ | Not prescribed — performance-derived | Not prescribed — performance-derived | Structural adequacy and water penetration at design wind pressure (NATA-accredited lab) |
| BS EN 14351-1 / EN 12210 | UK / Europe | ~1.4mm–1.5mm (typical for Class 3+) | ~1.8mm (typical for Class 4–5) | Wind resistance (EN 12211), air permeability, water tightness, mechanical strength (EN 13115) |
| AAMA 101/I.S.2 | North America | 1.4mm (R class residential) | 1.6mm–2.0mm (C/HC class) | Uniform structural load, water resistance, air infiltration, forced entry (ASTM E330) |
| IS 1948 | India | 1.2mm minimum | 1.5mm minimum | Dimensional tolerances, mechanical properties, anodic coating thickness |
| GB/T 8478 | China | 1.4mm (main profiles) | 2.0mm (main profiles, high-rise) | Wind pressure, air tightness, water tightness, thermal performance, sound insulation |
A few patterns emerge from this comparison. Performance-based standards like AS 2047 and the EN framework give designers flexibility but demand rigorous testing evidence. Prescriptive standards like IS 1948 and GB/T 8478 simplify compliance checking — you can measure the wall with a caliper and know immediately whether it passes — but they can also encourage a race to the minimum rather than engineering for actual site conditions.
For Australian projects, the performance-based model means you cannot simply copy a thickness figure from an overseas standard and assume compliance. A 1.4mm profile that satisfies AAMA requirements for a sheltered suburban site in Texas may not survive AS 2047 testing at the wind pressures found in coastal Queensland. The standard that applies to your site dictates the test your window must pass, and the test dictates the thickness your profile needs.
Knowing which standard governs your project tells you what the frame must survive. The next question is what happens inside that frame when wind, heat, and sound hit it simultaneously — because thickness influences all three performance outcomes in ways that are not always intuitive.

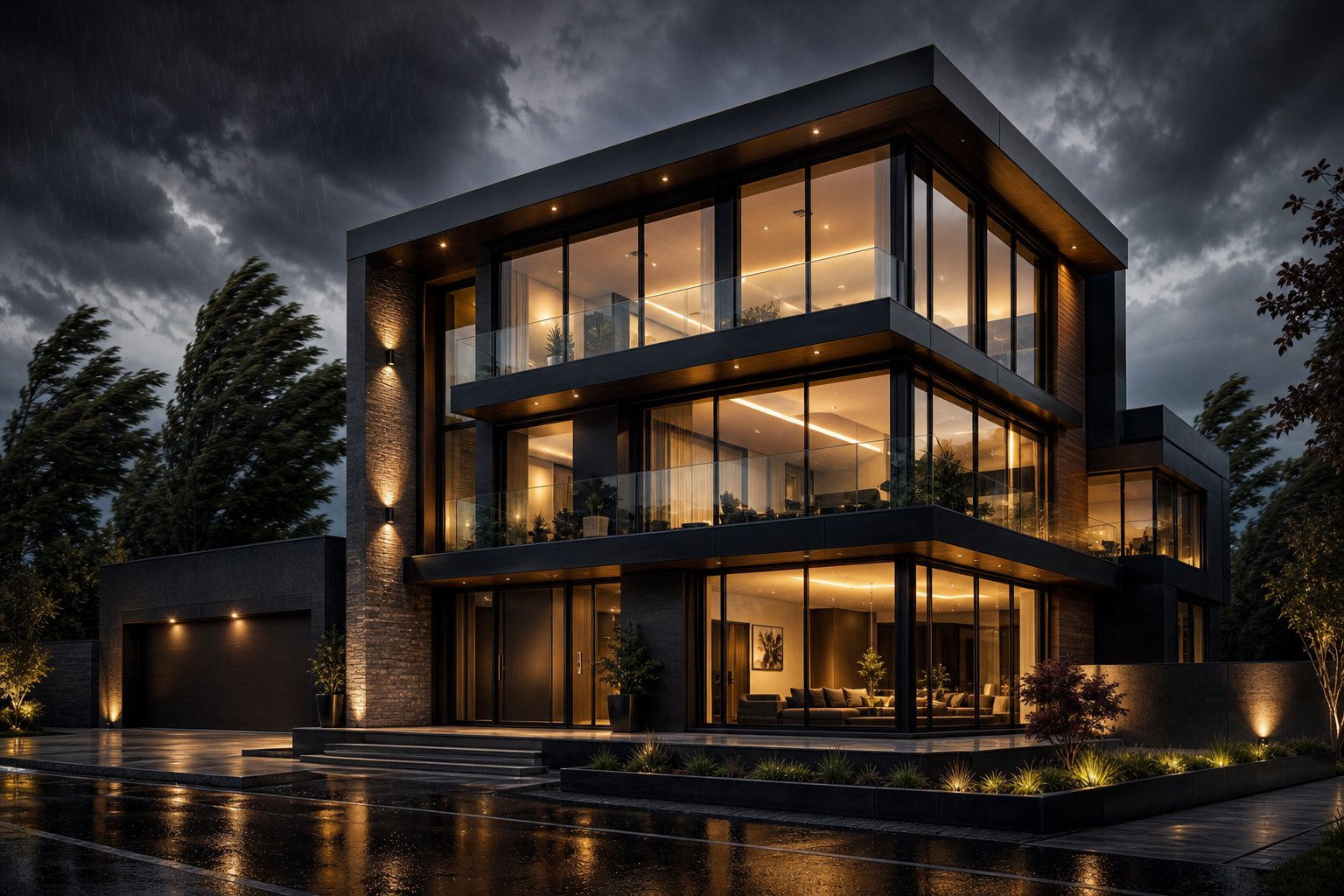

How Thickness Affects Wind, Thermal, and Acoustic Performance
Structural adequacy gets a window through the test lab. But once installed, that frame must manage wind pressure, resist heat transfer, and contribute to acoustic comfort — simultaneously, for decades. Wall thickness plays a role in all three outcomes, though not always in the direction you might expect. Thicker is not universally better when thermal performance enters the equation.
Wind Load Resistance and Structural Deflection
Wind hits a window as a uniform pressure across the glass and frame. The frame must transfer that load to the surrounding structure without flexing beyond acceptable limits. Two engineering properties govern how well it does this: section modulus and moment of inertia. Both increase when you add material to the profile walls.
Moment of inertia describes a cross-section’s resistance to bending. For hollow aluminum window profiles, it depends on how much material sits far from the neutral axis — meaning the outer walls of the extrusion contribute disproportionately to stiffness. Increasing wall thickness from 1.4mm to 1.6mm on a typical 60mm-deep residential profile can improve the moment of inertia by 12–15%, directly reducing deflection under the same wind pressure.
Australian practice limits frame deflection to span/150 for serviceability. On a 1500mm span, that means no more than 10mm of flex at design wind pressure. When a profile sits close to that limit at 1.4mm, stepping up to 1.6mm often provides the margin needed without redesigning the entire frame geometry. For slim profile windows where architects want minimal sight lines, this relationship becomes a constant negotiation — every millimetre of wall thickness buys structural headroom but adds visual bulk.
Thermal Break Design and Energy Efficiency
Here is where thickness works against you. Aluminium conducts heat at approximately 205 W/mK — roughly 1,500 times faster than still air. Every millimetre of aluminium connecting the exterior face to the interior face acts as a thermal bridge, channelling heat straight through the building envelope.
Thicker aluminium walls mean more conductive material in the cross-section. Without intervention, a 2.0mm aluminium windows profile transfers measurably more heat than a 1.4mm one, simply because there is more metal available to conduct energy. This is why thermal break design becomes progressively more critical as wall thickness increases.
Thermally broken frames use a polyamide strip — typically with a thermal conductivity around 0.25 W/mK — to physically separate the interior and exterior aluminium sections. The geometry of that break must compensate for the conductivity of the surrounding metal. A thicker-walled profile needs a wider or more complex thermal break zone to achieve the same U-value as a thinner-walled equivalent. Profile depth accommodates this: deeper frames allow wider polyamide strips and additional air chambers that interrupt the conductive path.
For Australian projects chasing NatHERS compliance or high WERS ratings, this trade-off is real. You cannot simply specify thicker walls for structural safety and assume thermal performance follows. The two must be engineered together — structural adequacy through wall thickness and alloy selection, thermal performance through break geometry and chamber design.
Acoustic Performance and Frame-Transmitted Sound
Sound transmission through a window assembly follows two paths: through the glazing and through the frame. Glazing dominates — a standard 6.38mm laminated pane outperforms a 4mm monolithic sheet by 5–8 dB regardless of frame thickness. But the frame still matters, particularly at lower frequencies where vibration transmits through solid materials more readily.
Thicker aluminium walls add mass to the frame, which increases its resistance to vibration at audible frequencies. The improvement is modest compared to glazing upgrades — perhaps 1–2 dB for a step from 1.4mm to 1.8mm — but it compounds with other measures. In high-noise environments near airports or arterial roads, every decibel counts, and specifying a heavier aluminium windows profile contributes to the overall acoustic package alongside laminated glass and proper seal compression.
The thermal break also plays an acoustic role. Polyamide strips decouple the inner and outer frame sections, reducing the direct transmission path for structure-borne sound. A well-designed thermally broken profile can outperform a thicker non-broken profile acoustically, because the break interrupts vibration transfer in a way that raw mass alone cannot.
What Happens When Thickness Is Insufficient
Under-specified wall thickness does not cause immediate catastrophic failure. Instead, it produces a slow degradation that becomes visible over months or years as the frame repeatedly flexes beyond its intended limits. Failure modes in aluminium window systems often emerge gradually, driven by the interaction between climate exposure, structural load, and material behaviour.
Observable signs that wall thickness is inadequate for the installed conditions include:
- Visible frame deflection during strong winds — the mullion or transom bows inward noticeably when pressure builds
- Seal failure and air leakage — repeated flexing fatigues weatherseals, causing them to lose compression and allow drafts
- Water ingress at corners — frame movement opens micro-gaps at corner joints where sealant or gaskets cannot accommodate the flex
- Hardware loosening — hinges, locks, and friction stays work loose as the surrounding aluminium deforms around screw threads
- Condensation on interior frame surfaces — insufficient thermal break performance (often linked to thinner profiles with inadequate break geometry) creates cold spots where moisture collects
- Difficulty operating sashes — sliding panels bind or casements drag as frame distortion misaligns the sash-to-frame relationship
- Cracking or crazing in powder coat finish — surface coatings cannot stretch with repeated frame movement and begin to fracture at stress points
These symptoms rarely appear in isolation. A frame that deflects excessively will typically develop seal issues first, followed by water problems, then hardware degradation — a cascading sequence that accelerates once the first failure mode takes hold. By the time a homeowner notices the window is hard to close or leaking in storms, the underlying cause has been present since installation.
Recognising these signs is one thing. Confirming whether the installed thickness matches what was specified — and whether that specification was adequate in the first place — requires measurement and documentation. Knowing how to verify what is actually in the wall is a practical skill that separates informed builders and inspectors from those relying on trust alone.
How to Verify Aluminium Thickness On-Site and from Suppliers
A specification on paper means nothing if the product delivered to site does not match. In the aluminium window manufacturer space — particularly with imported products — stated wall thickness and actual wall thickness do not always agree. The difference might be 0.1mm or 0.2mm, but on a profile specified at 1.4mm, that shortfall represents a 7–14% reduction in structural material. Builders, inspectors, and homeowners who know how to check are far less likely to end up with under-performing frames hidden behind powder coat and plasterboard.
Tools and Methods for Measuring Wall Thickness
Three practical methods cover the range of situations you will encounter on an Australian building site or during goods receival.
Digital vernier calipers on exposed edges. The simplest approach. Wherever the aluminium extrusion is exposed — cut ends during aluminum windows fabrication, unglazed frames awaiting installation, or the internal rebate edge visible when a sash is removed — a set of digital calipers with 0.01mm resolution gives you a direct reading. Position the jaws across the wall section, ensuring they sit flat against both faces without catching on burrs or powder coat build-up. Take readings at multiple points along the profile: top rail, bottom rail, both stiles, and any mullions. Wall thickness can vary slightly between different sections of the same extrusion due to die wear or process variation.
Ultrasonic thickness gauges for non-destructive testing. Once a window is powder coated and installed, you cannot access a bare aluminium edge without damaging the finish. This is where ultrasonic thickness gauges become essential. These handheld instruments emit high-frequency sound pulses through the material and calculate thickness based on the time it takes for the echo to return from the opposite face. A dual-crystal probe works through powder coating without removing it, measuring the aluminium substrate directly. The gauge needs calibration against a known sample of the same alloy, and a coupling gel applied to the test surface ensures accurate sound transmission. Resolution down to 0.01mm is achievable with quality instruments, making them ideal for verifying installed frames without any destructive intervention.
Cross-section inspection of cut-off samples. During fabrication, every mitre cut produces an offcut. These small triangular pieces reveal the full internal geometry of the profile — every chamber, web, and wall — in cross-section. Ask your fabricator or installer to retain cut-offs from your order. Measuring these with calipers gives you the most complete picture of wall thickness across all elements of the profile, including internal webs that are impossible to reach with external measurement tools.
Documentation to Request from Your Supplier
Physical measurement confirms what arrived on site. Documentation confirms what should have arrived — and provides a paper trail if the two do not match. For any aluminium window manufacturer supplying your project, request the following before accepting delivery:
- Mill test report (MTR) — Issued by the extrusion mill, this document confirms the alloy composition, mechanical properties (tensile strength, yield strength, elongation), and production batch number. It proves the aluminium is actually 6063-T5 or whatever grade was specified, not a weaker substitute.
- Dimensional inspection report — Shows measured wall thickness, profile depth, and tolerances against the die drawing. Reputable extruders measure these with calibrated instruments and record results per batch.
- AS 2047 test certificate — Issued by a NATA-accredited laboratory, confirming the window system passed structural adequacy and water penetration testing at the rated wind pressure. This certificate ties a specific profile (with its specific wall thickness) to a proven performance outcome.
- Certificate of conformity — A manufacturer’s declaration that the delivered product matches the tested and certified configuration. Any deviation from the tested profile — including wall thickness reduction — invalidates the test certificate.
Discount aluminium windows sourced through brokers or direct-import channels sometimes arrive without one or more of these documents. That gap should raise immediate questions. Without an MTR, you cannot verify alloy grade. Without a dimensional report, you are trusting a label rather than a measurement. Without an AS 2047 certificate, the window has no proven performance rating for Australian conditions.
When to Commission Independent Testing
Most residential projects do not need third-party laboratory involvement — caliper checks and proper documentation provide adequate assurance. But certain situations warrant engaging an independent testing lab or inspection service:
- Large-volume commercial orders where the financial exposure from non-compliant product justifies the testing cost
- Imported product from an unfamiliar supplier where you have no track record to rely on and documentation cannot be independently verified
- Discrepancies between stated and measured thickness — if your caliper readings consistently show 1.2mm on a profile specified at 1.4mm, laboratory confirmation removes any doubt about measurement technique
- Dispute resolution — when a builder, certifier, or homeowner suspects non-compliance, an independent report from a NATA-accredited facility carries legal weight that site measurements alone may not
- Cyclone or bushfire-rated installations where the consequences of under-specification are severe and council inspectors may require additional evidence of compliance
Independent labs can perform full cross-sectional analysis, alloy verification through spectrometry, and mechanical property testing on sample pieces. The cost typically runs a few hundred dollars per sample — insignificant against the cost of replacing non-compliant windows across an entire project.
If you cannot measure it, you cannot trust it. A 0.2mm shortfall in wall thickness might be invisible to the eye, but it shows up clearly in deflection performance under wind load — and in test results that determine pass or fail.
Verification is the final quality gate before a window disappears behind reveals and trims. With measurement data and documentation in hand, you have everything needed to make an informed thickness decision for your next project — one that balances structural demands, performance targets, and the realities of your specific site.
Selecting the Right Thickness for Your Next Project
Thickness is never a number you pick in isolation. It emerges from a sequence of project-specific questions — each answer narrowing the field until the correct aluminium window profile reveals itself. Treat the following as a decision checklist rather than a shopping list.
Key Questions to Answer Before Specifying Thickness
- What is your design wind pressure? Determine the wind region (A through D), terrain category, and building height using AS/NZS 1170.2. This gives you the pressure in Pascals that every frame must survive.
- What window type and span are you specifying? A 900mm casement and a 2400mm sliding door live in different structural worlds. Identify the opening size, operation type, and unsupported span for each location on your elevation.
- What alloy and temper will the profiles use? Standard 6063-T5 suits most residential work. If you need thinner sight lines on large openings, a higher-strength alloy like 6063-T6 may let you achieve the same capacity at reduced wall gauge.
- Which building standard applies? For Australian projects, AS 2047 demands performance evidence — not just a thickness figure. Confirm that the proposed profile has been tested and certified at or above your site’s required pressure.
- What thermal and acoustic outcomes matter? Thicker walls improve stiffness but increase thermal bridging. If NatHERS or WERS targets are tight, the thermal break geometry must compensate. Acoustic priorities may favour heavier profiles near transport corridors.
- What glazing unit will the frame hold? Profile depth must accommodate the IGU thickness — 24mm for standard double glazing, 36mm+ for triple — plus adequate rebate depth for structural glazing tape or beading.
Integrating Thickness into Your Overall Window Specification
No single parameter makes a window pass or fail. Wall thickness interacts with profile depth, chamber geometry, thermal break width, alloy grade, hardware selection, and glazing weight as parts of one integrated system. Upgrading thickness without considering thermal break design can worsen energy performance. Reducing thickness to chase slimmer sight lines without verifying deflection calculations risks structural failure. The best aluminum window systems balance all these variables simultaneously rather than optimising one at the expense of others.
When reviewing quotes from aluminium window suppliers, look beyond the headline thickness figure. Ask how the profile geometry contributes to stiffness, what thermal break configuration is used, and whether the system has been tested as a complete assembly — not just as an extrusion in isolation. A well-engineered 1.4mm profile with sophisticated chamber design can outperform a crude 1.8mm section on every metric that matters.
Finding a Supplier Who Gets the Engineering Right
The right supplier does not just sell alu windows and doors — they understand the relationship between thickness, alloy, geometry, and local compliance. For Australian projects, that means working with a company that can demonstrate AS 2047 certification across their range, provide mill test reports on request, and configure profiles to suit your specific wind zone, opening size, and performance targets.
MEICHEN’s aluminium windows range offers engineered profile systems with custom specification options across casement, sliding, awning, and fixed configurations for Australian residential and commercial builds. For readers ready to move from research into project planning, their page provides a practical next step — connecting the thickness and performance principles covered here with real product options tailored to local conditions.
The millimetres matter. Get them right, and your windows will perform quietly for decades. Get them wrong, and those same millimetres become the difference between a building that passes and one that does not.
Frequently Asked Questions About Aluminium Window Thickness
1. What is the standard wall thickness for residential aluminium windows in Australia?
The standard wall thickness for residential aluminium windows in Australia is 1.4mm. This gauge satisfies the structural demands of most single-storey and low-rise homes in wind regions A and B. However, AS 2047 does not prescribe a fixed minimum — it requires windows to pass structural adequacy and water penetration testing at the design wind pressure for the specific installation site. Projects in higher wind zones, coastal locations, or with larger openings often require 1.6mm or thicker walls to meet performance requirements. Suppliers like MEICHEN offer project-specific profile configurations engineered to match Australian wind zone and compliance demands across their full aluminium window range.
2. What is the difference between wall thickness and profile depth in aluminium windows?
Wall thickness refers to the gauge of the aluminium extrusion walls themselves, typically ranging from 1.2mm to 2.0mm. It controls structural integrity, wind load resistance, and hardware support. Profile depth is the front-to-back dimension of the entire frame section, commonly spanning 40mm to 104mm, and determines glazing capacity, thermal break accommodation, and visual proportions. When a manufacturer quotes a 60mm aluminium window, they mean profile depth — the actual aluminium walls inside that frame might only be 1.4mm thick. Both measurements must be specified independently to avoid costly errors on site.
3. How do I verify the aluminium thickness of windows delivered to my site?
Three practical methods work for on-site verification. Digital vernier calipers can measure exposed aluminium edges on cut ends or unglazed frames with 0.01mm resolution. Ultrasonic thickness gauges measure through powder coating non-destructively using sound pulses, ideal for installed windows. Cross-section inspection of fabrication cut-offs reveals the full internal profile geometry. Beyond physical measurement, request mill test reports confirming alloy grade, dimensional inspection reports showing measured wall thickness, and AS 2047 test certificates from a NATA-accredited laboratory. If discrepancies appear between stated and measured thickness, an independent testing lab can provide legally weighted confirmation.
4. Does aluminium alloy grade affect the wall thickness required for windows?
Yes, alloy grade directly influences required wall thickness. Higher-strength alloys resist bending more effectively per millimetre of material. For example, 6061-T6 has roughly 50% higher tensile strength than the standard 6063-T5 window alloy, meaning it can achieve equivalent structural performance at a thinner wall gauge. A 6061-T6 profile at 1.4mm can carry similar wind loads to a 6063-T5 profile at 1.8mm. However, stronger alloys come with trade-offs including reduced extrudability for complex shapes, coarser surface finish, higher cost, and longer lead times. For most Australian residential projects, 6063-T5 at 1.4mm delivers the optimal balance of strength, finish quality, and economy.
5. Why do different window types require different aluminium wall thicknesses?
Each window type concentrates structural stress in different locations. Casement windows transfer wind load through hinge fixings into the frame jamb, requiring adequate wall material to prevent screw stripping. Sliding doors need thick bottom rails to maintain track rigidity under heavy glass panel weight. Awning windows create concentrated downward force at top-hung hinge points. Fixed windows have no moving parts or hardware stress points, allowing thinner profiles in sheltered locations. Bi-fold and stacking doors carry panel weights exceeding 100kg each across multi-metre spans, routinely demanding 2.0mm or thicker walls. MEICHEN’s aluminium windows range addresses these varying demands with type-specific profile options engineered for each configuration’s unique load path.
More Window & Door Guides
