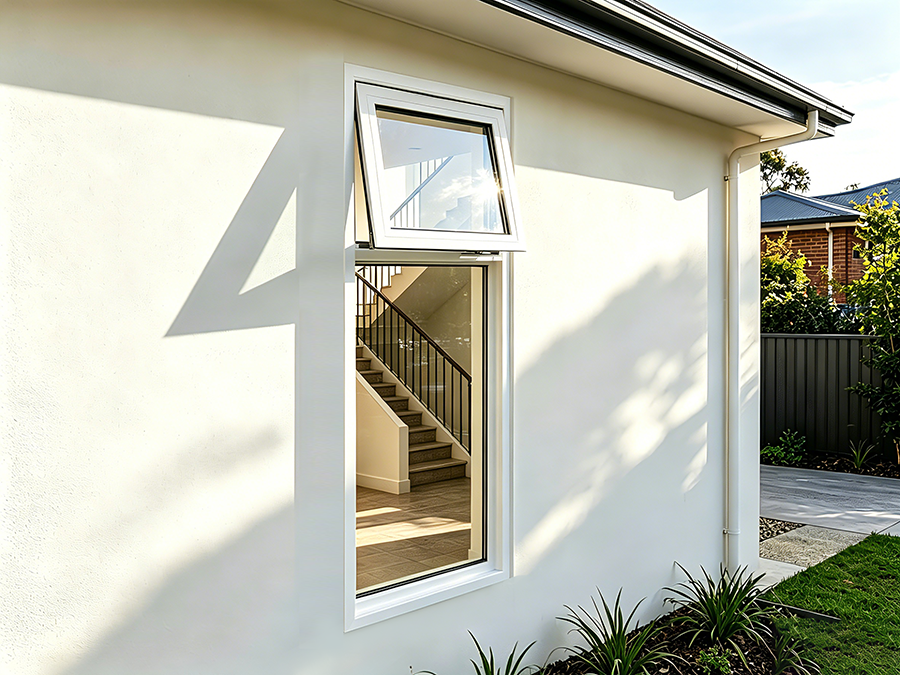

MC100 Awning Window（Fixed Window）
Designed for rainy climates — opens outward from the bottom for airflow without letting rain in, and works with fly screens and security screens.
Quick Specs
MC100 Awning Window（Fixed Window） Quick Specs
Fast product-selection information for early specification, enquiry and comparison.
Product Overview
Practical Aluminium Window System for Project-Based Supply
Experience superiorventilation performancewith our windows,seamlessly connectingindoor and outdoorspaces while providingprotection against strongwinds. Benefit from strongpracticality, saving indoorspace and ensuringrainwater stays out evenwhen windows are leftopen. Enjoy enhancedsecurity with windowsthat are difficult to openfrom the outside andoffer excellent anti-theftfeatures. Maintain hygieneeffortlessly with outward-facing hanging windowsthat make cleaning abreeze.
- 200Pa water tightness
- 800Pa-2000Pa ultimate pressure
- 5+12A+5 and 6+12A+6 glazing options
Configurations

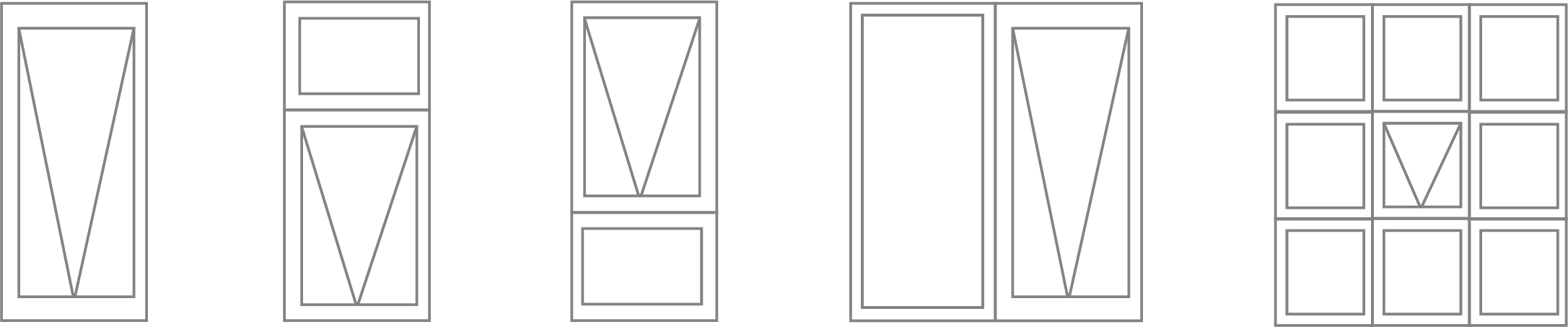

Product Configuration / Opening Diagrams
Configuration drawings illustrate the proposed opening arrangement, fixed and operable elements, and section details. Confirm dimensions, hardware, support conditions and installation interfaces in the approved project drawings.
System Data
System Parameters
System-level information is separated from glass, hardware and performance data so specifiers can review the product without mixing design choices and tested values.
| Series | MC100 |
|---|---|
| Product Category | Aluminium Awning window system |
| System Type | Thermal break |
| Opening Method | Awning |
| Frame / Sash Finish | Powder coated aluminium; standard and custom colours available |
| Project Customisation | Size, layout, glazing, hardware, colour and technical drawings should be confirmed from project drawings. |
Glass Data
Glass Specifications
Glass build-ups and U-value references are listed separately to support early comparison before the final project specification is confirmed.
| Available Glass Build-Up | 5mm+12Ar+5mm |
|---|---|
| Available Glass Build-Up | 6mm+12Ar+6mm |
| Available Glass Build-Up | 8mm+9Ar+8mm |
| Glazing | Visible Trans | Winter Nighttime U-Value | Summer Daytime U-Value |
|---|---|---|---|
| 5+12A+5 | 63% | Winter Nighttime -1.85W/m²k | Summer Daytime – 1.81W/m²k |
| 6+12A+6 | 72% | Winter Nighttime -1.85W/m²k | Summer Daytime – 1.83W/m²k |
Glass-table U-value and solar heat gain figures describe the listed glazing, not a verified whole-window or whole-door rating. Confirm whole-assembly performance for the specified frame, glass and opening configuration.
Customisation
Glass Configuration Options
These options can be selected according to project requirements and final specification.
Hardware
Hardware Options
Hardware options can be selected according to project requirements, operation preference, locking needs and the final window specification.
Standard Hardware Reference
- China brand single chain winder
Optional Hardware Upgrades
- Doric DS1# 27001 single chain winder
- Doric DS94 # 27001 double chain winder
Colours
Standard Colour Options
Standard colour references are shown below. Custom powder coating can also be reviewed for project-specific requirements.
Performance
Maximum Performance
Performance data is separated from system structure and glass options for easier review.
| Water Tightness | 200Pa |
|---|---|
| Ultimate Pressure | 2000Pa with no collapse |
| Air Tightness | Positive – 75Pa – 9.38Ls⁻¹ |
| Air Tightness | Negative – 75Pa – 10.23Ls⁻¹ |
| Air Tightness | Overall Area: 6.0227m² |
Note: Final product performance should be confirmed by project requirements, selected glass, configuration, site conditions and applicable Australian standards.
Applications
Where MC100 Awning Window（Fixed Window） Is Used
Related Products
Related Products & Systems
FAQ
MC100 Awning Window（Fixed Window） FAQ
What is the difference between awning and casement windows?
An awning sash is hinged at the top and opens outward at the bottom; a casement sash is hinged at the side. For MC100 Awning Window（Fixed Window）, review outward clearance, opening restrictors, screening and the required ventilation opening. The opening style is not a guarantee against rain entering while the sash is open.
Is MC100 Awning Window（Fixed Window） thermally broken?
MC100 Awning Window（Fixed Window） is listed as a thermally broken aluminium system. A thermal break reduces conduction through the frame, but the glass, frame, dimensions and configuration must be evaluated together. Compare verified whole-window U-value and SHGC data for the proposed assembly; generic glass figures are not a whole-system rating. See YourHome glazing guidance.
What double-glazing options are listed for MC100 Awning Window（Fixed Window）?
The published glass build-ups are 5mm+12Ar+5mm; 6mm+12Ar+6mm; 8mm+9Ar+8mm. These are the listed options for this model, not interchangeable approvals for every opening size. Confirm glass type, safety requirements, coating and configuration with the project schedule. Published glass-only thermal values must not be represented as whole-window performance.
Does an AS2047 report cover every configuration?
No. Documentation must identify the relevant series, opening type, dimensions, glass, hardware and permitted variations. Compare the covered structural, water and air performance with the project requirements. The compliance documents should be checked for applicability to MC100 Awning Window（Fixed Window）; a report for another model is not interchangeable.
What information is needed for a quote?
For MC100 Awning Window（Fixed Window）, send drawings and schedules showing project location, opening sizes, quantities, glazing and performance requirements, finishes and expected delivery timing. Identify installation and delivery responsibilities. The quote is developed from the agreed supply scope; no fixed price or delivery lead time is assumed.
