MA100 Awning Window
Benefit from strongpracticality, saving indoorspace and ensuringrainwater stays out evenwhen windows are left open.
Quick Specs
MA100 Awning Window Quick Specs
Fast product-selection information for early specification, enquiry and comparison.
Product Overview
Practical Aluminium Window System for Project-Based Supply
Enjoy enhancedsecurity with windowsthat are difficult to openfrom the outside andoffer excellent anti-theftfeatures. Maintain hygieneeffortlessly with outward-facing hanging windowsthat make cleaning abreeze.
- MA100 Fixed Window
- MA100 Awning Window
- MA100 Fixed&Awning Window
Configurations

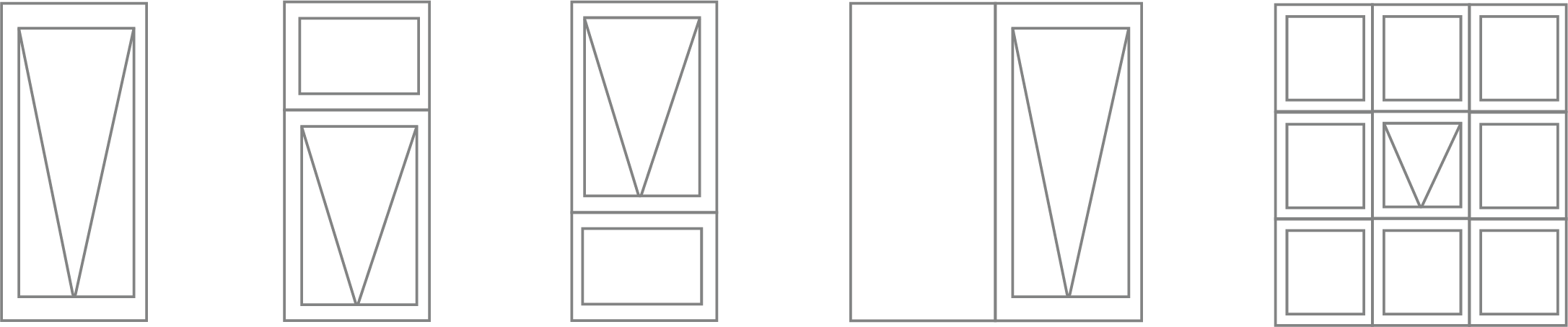

Product Configuration / Opening Diagrams
Configuration drawings illustrate the proposed opening arrangement, fixed and operable elements, and section details. Confirm dimensions, hardware, support conditions and installation interfaces in the approved project drawings.
System Data
System Parameters
System-level information is separated from glass, hardware and performance data so specifiers can review the product without mixing design choices and tested values.
| Series | MA100 |
|---|---|
| Product Category | Aluminium Awning Window system |
| System Type | Non- Thermal Break |
| Opening Method | Outward opening |
| Frame / Sash Finish | Powder coated aluminium; standard and custom colours available |
| Project Customisation | Size, layout, glazing, hardware, colour and technical drawings should be confirmed from project drawings. |
Glass Data
Glass Specifications
Glass build-ups and U-value references are listed separately to support early comparison before the final project specification is confirmed.
| Available Glass Build-Up | 5mm+12Ar+5mm |
|---|---|
| Available Glass Build-Up | 6mm+12Ar+6mm |
| Available Glass Build-Up | 8mm+9Ar+8mm |
| Glazing | Visible Trans | Winter Nighttime U-Value | Summer Daytime U-Value |
|---|---|---|---|
| 5+12A+5 | 63% | Winter Nighttime -1.85W/m²k | Summer Daytime – 1.81W/m²k |
| 6+12A+6 | 72% | Winter Nighttime -1.85W/m²k | Summer Daytime – 1.83W/m²k |
Glass-table U-value and solar heat gain figures describe the listed glazing, not a verified whole-window or whole-door rating. Confirm whole-assembly performance for the specified frame, glass and opening configuration.
Customisation
Glass Configuration Options
These options can be selected according to project requirements and final specification.
Hardware
Hardware Options
Hardware options can be selected according to project requirements, operation preference, locking needs and the final window specification.
Standard Hardware Reference
- China Brand Single Chain Winder
Optional Hardware Upgrades
- Doric DS1# 27001 Single chain winder
- Doric DS94 # 27001 Double chain winder
Colours
Standard Colour Options
Standard colour references are shown below. Custom powder coating can also be reviewed for project-specific requirements.
Performance
Maximum Performance
Performance data is separated from system structure and glass options for easier review.
| Water Tightness | Water: 600PA |
|---|---|
| Design wind pressure | 800PA/2000PA |
| Air Tightness | Sealed : At +75 Pa: 0.52 L/s·m² |
| Air Tightness | Sealed : At -75 Pa: 0.98 L/s·m² |
| Air Tightness | Sealed : Overall Area: 6.15 m² |
Note: Final product performance should be confirmed by project requirements, selected glass, configuration, site conditions and applicable Australian standards.
Applications
Where MA100 Awning Window Is Used
Related Products
Related Products & Systems
FAQ
MA100 Awning Window FAQ
What is the difference between awning and casement windows?
An awning sash is hinged at the top and opens outward at the bottom; a casement sash is hinged at the side. For MA100 Awning Window, review outward clearance, opening restrictors, screening and the required ventilation opening. The opening style is not a guarantee against rain entering while the sash is open.
Is MA100 Awning Window thermally broken?
MA100 Awning Window is listed as a non-thermally broken aluminium system. Double glazing does not convert a non-thermally broken frame into a thermally broken system. Compare verified whole-window U-value and SHGC data for the proposed assembly; generic glass figures are not a whole-system rating. See YourHome glazing guidance.
What double-glazing options are listed for MA100 Awning Window?
The published glass build-ups are 5mm+12Ar+5mm; 6mm+12Ar+6mm; 8mm+9Ar+8mm. These are the listed options for this model, not interchangeable approvals for every opening size. Confirm glass type, safety requirements, coating and configuration with the project schedule. Published glass-only thermal values must not be represented as whole-window performance.
Does an AS2047 report cover every configuration?
No. Documentation must identify the relevant series, opening type, dimensions, glass, hardware and permitted variations. Compare the covered structural, water and air performance with the project requirements. The compliance documents should be checked for applicability to MA100 Awning Window; a report for another model is not interchangeable.
What information is needed for a quote?
For MA100 Awning Window, send drawings and schedules showing project location, opening sizes, quantities, glazing and performance requirements, finishes and expected delivery timing. Identify installation and delivery responsibilities. The quote is developed from the agreed supply scope; no fixed price or delivery lead time is assumed.
